ER26500J-T Lithium Thionyl Chloride Batteries Cylindrical Cells · Bobbin Type 8500 mAh · Jauch Battery

ER26500J-T Lithium Thionyl Chloride Batteries Cylindrical Cells · Bobbin Type 8500 mAh

SPECIFICATIONS:

  • Cell Size reference: C
  • Chemistry: Li-SoCl2
  • Nominal Voltage: 3.6V
  • Nominal Capacity (mAh): 8500 mAh
  • Max. Continuous Current: 150 mA
  • Max. Pulse Current: 300 mA
  • Operating Temperature: -60°C to +85°C
  • Storage: 30°C max
  • Weight Approx.: 52 gr.
  • ESD protection
  • UL 1642: MH62838

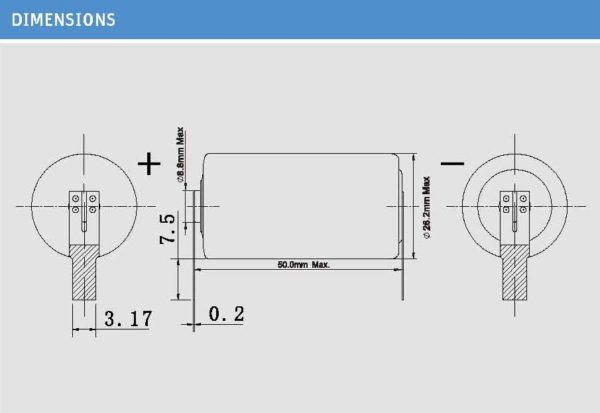

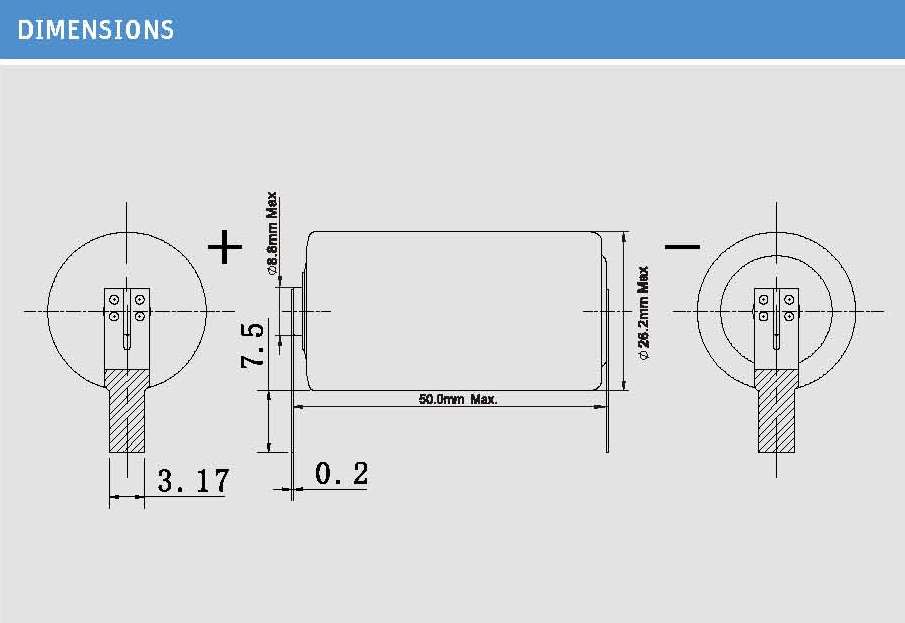

  • Max. Dimensions [mm]: 26.2 x 50mm
  • Termination Style: Solder Tab

ER26500J-T
