ER32L100J Lithium Thionyl Chloride Batteries Wafer Cells 1700 mAh

SPECIFICATIONS:

• Cell Size reference: 1/6D
• Chemistry: Li-SoCl2
• Nominal Voltage: 3.6V
• Nominal Capacity (mAh): 1000 mAh
• Max. Continuous Current: 10 mA
• Max. Pulse Current 50 mA
• Operating Temperature: -55°C to +85°C
• Storage: 30°C max
• Weight Approx.: 24 gr.
• ESD protection
• UL 1642: MH62838

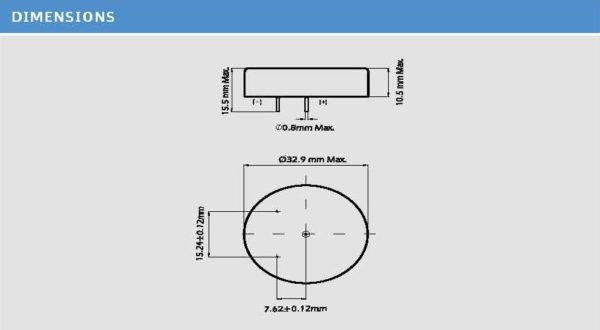

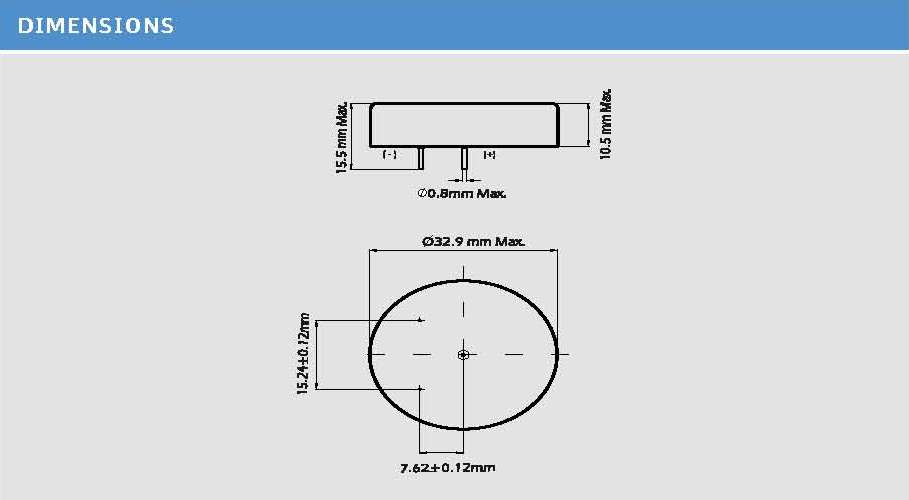

• Max. Dimensions [mm]: 32.9 x 10.5mm
• Termination Style: PC Pin

ER32L100J
