ER34615J-T Lithium Thionyl Chloride Batteries Cylindrical Cells · Bobbin Type 19000 mAh · Jauch Battery
ER34615J-T Lithium Thionyl Chloride Batteries Cylindrical Cells · Bobbin Type 19000 mAh
SPECIFICATIONS:
- Cell Size reference: D
- Chemistry: Li-SoCl2
- Nominal Voltage: 3.6V
- Nominal Capacity (mAh): 19000 mAh
- Max. Continuous Current: 230 mA
- Max. Pulse Current: 4700 mA
- Operating Temperature: -60°C to +85°C
- Storage: 30°C max
- Weight Approx.: 100 gr.
- ESD protection
- UL 1642: MH62838

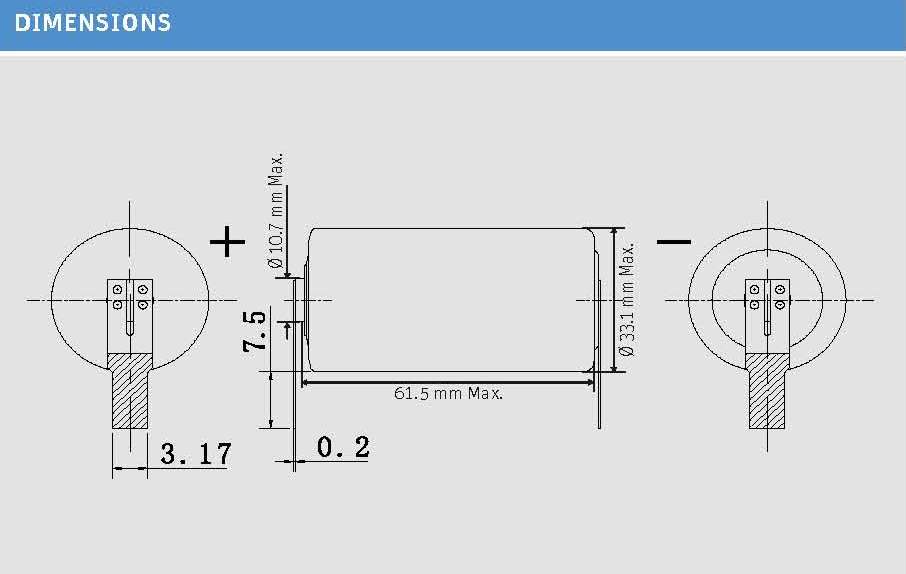

- Max. Dimensions [mm]: 33.1 x 61.5mm
- Termination Style: Solder Tab
