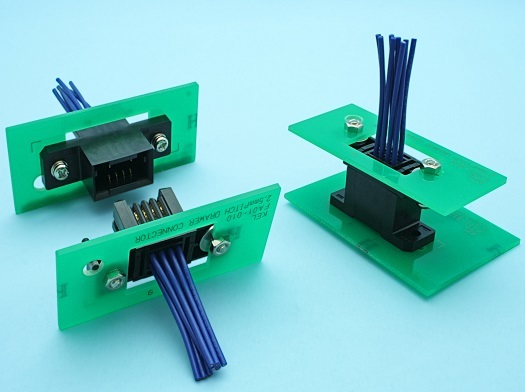

FA Series 2.5mm Pitch Drawer Connector for Discrete Cable Crimp type

▶ Receptacle (FA:Cable side connector), Plug (FA11:PCB side connector) and Cable plug (FA12:Cable side connector for cable to cable) are available and can accommodate a wide range of usage.
▶ Absorbs ±3mm(0.118’’) gap in X and Y directions when mating.
▶ Floating structure of the screwed area enables ±1.4mm (0.055) displacement in X and Y directions in mated condition.
▶ Highly reliable design with effective mating length of 3mm (0.118’’).
▶ With a twin-leaf pinching 2 point contact structure adopted as a contact mechanism, improved reliability based on stable contact performance is ensured.
▶ Option applicable for Hot swap is available for FA12 series.

Number of contacts: 4pin, 6pin, 8pin, 10pin, 12pin, 14pin, 16pin, 18pin, 20pin, 22pin, 24pin, 26pin, 28pin, 30pin, 32pin, 34pin, 38pin, 40pin

Type: FA01 Receptacle (Cable side connector) · PN’s: FA01-004-x, FA01-006-x, FA01-008-x, FA01-010-x, FA01-012-x, FA01-014-x, FA01-016-x, FA01-018-x, FA01-020-x, FA01-022-x, FA01-024-x, FA01-026-x, FA01-028-x, FA01-030-x, FA01-032-x, FA01-034-x, FA01-038-x, FAS01-040-x

Type: FA11 Plug (PCB side connector) · PN’s: FA11-004, FA11-006, FA11-008, FA11-010, FA11-012, FA11-014, FA11-016, FA11-018, FA11-020, FA11-022, FA11-024, FA11-026, FA11-028, FA11-030, FA11-032, FA11-034, FA11-038, FA11-040

Type: FA12 Plug (Cable plug) · PN’s: FA12-004, FA12-006, FA12-008, FA12-010, FA12-012, FA12-014, FA12-016, FA12-018, FA12-020, FA12-022, FA12-024, FA12-026, FA12-028, FA12-030, FA12-032, FA12-034, FA12-038, FA12-040
