FAS Series 1.5mm Pitch Drawer Connector for Discrete Cable Crimp type

▶ Receptacle (FAS01:Cable side connector), Plug (FAS11:PCB side connector) and Cable plug (FAS12:Cable side connector for cable to cable) are available and can accommodate a wide range of usage.
▶ Downsized by more than 30% compared to FA Series.
▶Absorbs ±3mm gap in X and Y directions when mating.
▶ Floating structure of the screwed area enables ±1.4mm displacement in X and Y directions in mated condition.
▶ Highly reliable design with effective mating length of 3.4mm(0.134’’).
▶ Twin leaf pinching 2 points structure ensures reliability with stable contact force and prevents contact buckling.
▶ Option applicable to hot swap.
▶ 3 levels of hot swap can be applied for FAS12 series.

Number of contacts: 4pin, 6pin, 8pin, 10pin, 12pin, 14pin, 16pin, 18pin, 20pin, 22pin, 24pin, 26pin, 28pin, 30pin, 32pin, 34pin, 38pin, 40pin

Type: FAS01 Receptacle (Cable side connector) · PN’s: FAS01-004, FAS01-006, FAS01-008, FAS01-010, FAS01-012, FAS01-014, FAS01-016, FAS01-018, FAS01-020, FAS01-022, FAS01-024, FAS01-026, FAS01-028, FAS01-030, FAS01-032, FAS01-034, FAS01-038, FAS01-040

Type: FAS11 Plug (PCB side connector) · PN’s: FAS11-004, FAS11-006, FAS11-008, FAS11-010, FAS11-012, FAS11-014, FAS11-016, FAS11-018, FAS11-020, FAS11-022, FAS11-024, FAS11-026, FAS11-028, FAS11-030, FAS11-032, FAS11-034, FAS11-038, FAS11-040

Type: FAS12 Plug (Cable plug) · PN’s: FAS12-004, FAS12-006, FAS12-008, FAS12-010, FAS12-012, FAS12-014, FAS12-016, FAS12-018, FAS12-020, FAS12-022, FAS12-024, FAS12-026, FAS12-028, FAS12-030, FAS12-032, FAS12-034, FAS12-038, FAS12-040

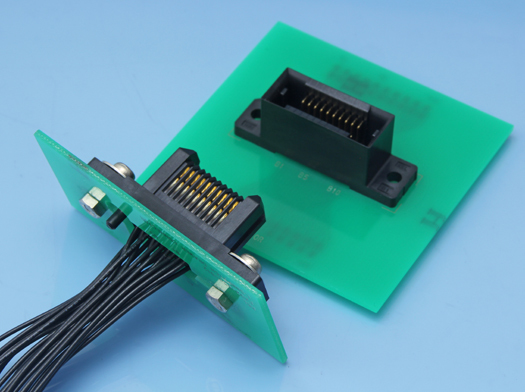

FAS Series
