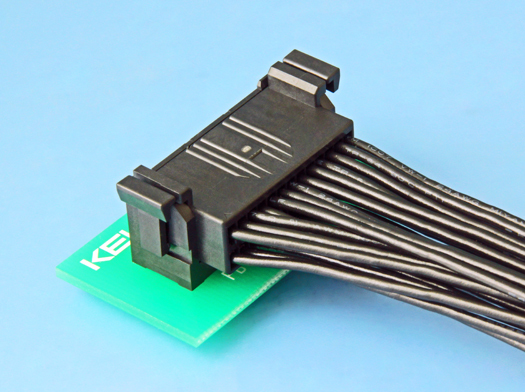

FBC Series 2.0mm Pitch Drawer Connector for Discrete Cable Crimp type

▶ Side cable-entry type connector with stacked mating structure.
▶ Provided with an E-Lock type locking mechanism with high operability.
▶ The E-Lock mechanism prevents accidental disengagement, maintaining stable contact performance.
▶ With a twin-leaf pinching 2 point contact structure adopted as a contact mechanism, improved reliability based on stable contact performance is ensured
▶ Three sizes : 26, 36 and 40 pins.
▶ For discrete cable. (#22 AWG, #24 AWG and #26 AWG)

Number of contacts: 26pin, 36pin, 40pin

Type: FBC2 Plug (PCable side connector) · PN’s: FBC2-026-1, FBC2-036-1, FBC2-040-1

Type: FBC11 Receptacle (PCB connector) · PN’s: FBC11-026-1-B, FBC11-036-1-B, FBC11-040-1-B

FBC Series
