Description

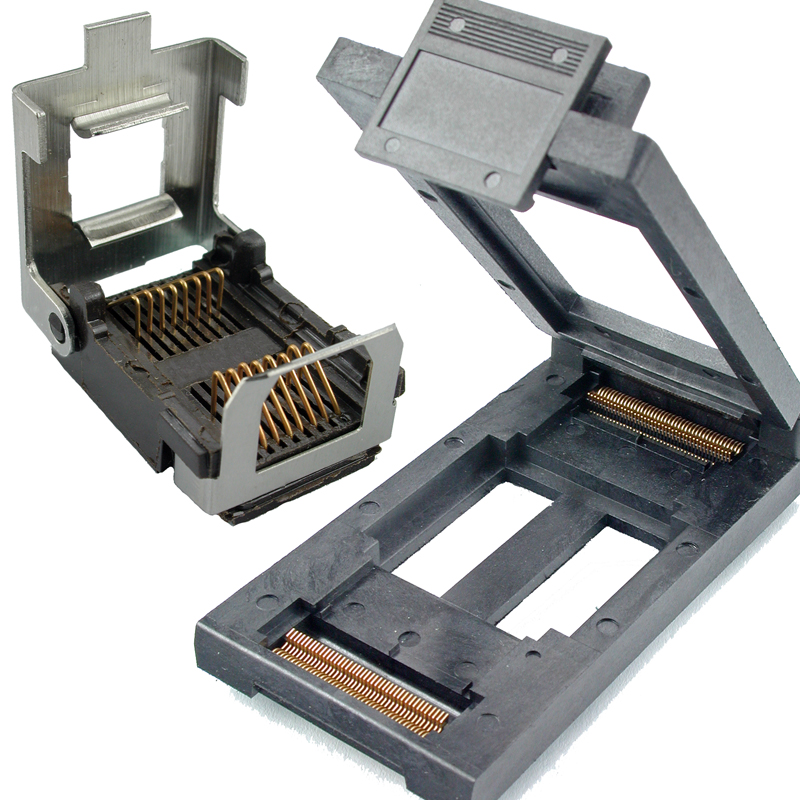

FlatPak Sockets
Design Features
Loranger International Corporation designs and manufactures burn-in and test sockets, printed circuit boards and environmental chamber systems for the electronics manufacturing industry.
Loranger International Corporation sockets are optimized for today’s small, fine pitch electronic packages, as well as for older style packages. Loranger International Corporation burn-in and test sockets are used worldwide in programs including defense, guidance, automotive, music, communication and space exploration.
| P/N | Pkg Type | I/O | Pitch (in) | Socket Style |
| 223181334M6617 | FlatPack | 332 | 0.000 | ClamShell |
| 223181334M6618A | FlatPack | 332 | 0.000 | ClamShell |
| 03570 D61PX255 | 136 | 0.026 | OpenTop | |
| 04250 841 6217 | CQFP | 84 | 0.020 | ClamShell |
| 04437 741 6217 | FlatPack | 74 | 0.050 | ClamShell |
| 03701 681 6215 | CQFP | 68 | 0.040 | ClamShell |
| 03702 682 6215 | FlatPack | 68 | 0.050 | ClamShell |
| 03700 641 6215 | FlatPack | 64 | 0.050 | ClamShell |
| 03802 641 CAX7 | CARRIER | 64 | 0.040 | ClamShell |
| 03802 641 X217 | QFP | 64 | 0.040 | ClamShell |
| 04437 641 6217 | FlatPack | 64 | 0.050 | ClamShell |
| 02900 501 X215 | FlatPack | 50 | 0.050 | ClamShell |
| 03701 681 6218B | CQFP | 48 | 0.040 | ClamShell |
| 04250 841 X218A | FlatPack | 48 | 0.020 | ClamShell |
| 02900 461 6215 | FlatPack | 46 | 0.050 | ClamShell |
| 02900 441 6215 | FlatPack | 44 | 0.050 | ClamShell |
| 03801 401 X218A | QFP | 40 | 0.040 | ClamShell |
| 223181040 6217 | FlatPack | 40 | 0.000 | ClamShell |
| 223181040 6218A | FlatPack | 40 | 0.000 | ClamShell |
| 04114 361 6215 | FlatPack | 36 | 0.050 | ClamShell |
| 03805 321 X217 | QFP | 32 | 0.026 | ClamShell |
| 03500 301 6215 | FlatPack | 30 | 0.050 | OpenTop |
| 03500 281 6211 | FlatPack | 28 | 0.050 | OpenTop |
| 03500 261 6211 | FlatPack | 26 | 0.050 | OpenTop |
| 04113 251 X218A | QFP | 25 | 0.000 | ClamShell |
| 04316 251 X215 | FlatPack | 25 | 0.000 | ClamShell |
| 03194 241 6215 | Butterfly FlatPack | 24 | 0.050 | OpenTop |
| 03370 241 6215 | FlatPack | 24 | 0.050 | ClamShell |
| 03500 241 6211 | FlatPack | 24 | 0.050 | OpenTop |
| 04435 241 X215 | FlatPack | 24 | 0.100 | ClamShell |
| 04437 641 6218A | FlatPack | 24 | 0.050 | ClamShell |
| 03466 221 6215 | FlatPack | 22 | 0.040 | ClamShell |
| 03194 161 6211 | Butterfly FlatPack | 16 | 0.050 | OpenTop |
| 03227 161 1215 | Adapter | 16 | 0.050 | OpenTop |
| 03229 161 1215 | Adapter | 16 | 0.050 | OpenTop |
| 03230 161 1215 | Adapter | 16 | 0.050 | OpenTop |
| 03250 161 6211 | Hybrid FlatPack | 16 | 0.040 | OpenTop |
| 03350 161 6215 | Hybrid FlatPack | 16 | 0.050 | ClamShell |
| 03350 161 6218D | Hybrid FlatPack | 16 | 0.050 | ClamShell |
| 03370 161 6215 | FlatPack | 16 | 0.050 | ClamShell |
| 03725 161 6217 | FlatPack | 16 | 0.030 | ClamShell |
| 03725 161 X25A | FlatPack | 16 | 0.030 | ClamShell |
| 04121 161 X217 | FlatPack | 16 | 0.050 | ClamShell |
| 04123 161 6217 | Hybrid FlatPack | 16 | 0.050 | ClamShell |
| 04123 161 6218A | FlatPack | 16 | 0.050 | ClamShell |
| 04123 161 X218B | FlatPack | 16 | 0.050 | ClamShell |
| 04326 161 X217 | FlatPack | 16 | 0.150 | ClamShell |
| 04326 151 X217 | FlatPack | 15 | 0.150 | ClamShell |
| 03194 141 6211 | Butterfly FlatPack | 14 | 0.050 | OpenTop |
| 03370 141 6215 | FlatPack | 14 | 0.050 | ClamShell |
