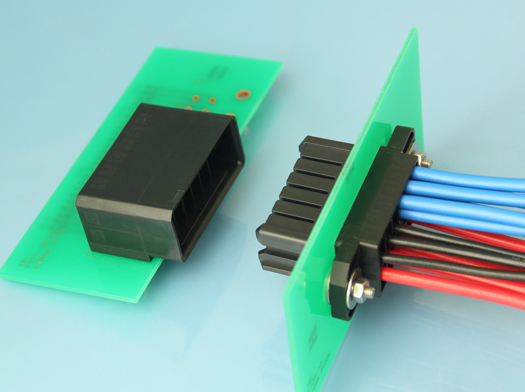

FTC Series 5.08mm Pitch Drawer Connector Two Cable Crimpable type

▶ This connector allows two cables to be crimped into one contact.
▶ Applicable with the crimping cable AWG #14/16/18/20.
▶ The cable crimped terminal can be connected to anywhere of the contact housing.
▶ Two cable crimping can transfer the power supply between connectors. i.e. Daisy chain connection
▶ Two cables crimping saves space by reducing the number of contact.
▶ Absorbs ±3 mm(0.118”) gap in XY directions.
▶ Movement of the screwed part of the cable connector can absorb maximum ±0.7 mm in the XY direction in mating condition.
▶ Highly reliable design with an effective mating length of 3 mm.
▶ Twin-Leaf Pinching 2 point contact structure prevents buckling of the contact and improves reliability with a stable contact force.

Type: Receptacle (Cable side connector) · FTC01: Drawer type – FTC02: With lock type

Number of contacts: (FTC01) 12pin – (FTC02) 06：06pin　10：10pin　12：12pin　20：20pin

Type: FTC11 Plug (PCB side connector)

Number of contacts: (S type）06：6pin　12：12pin　20：20pin 　(L type）06：6pin　10：10pin　12：12pin　20：20pin

Contact tail style S：Straight　L：Right angle

【Gold plating thickness】B：0.1μm min　F：0.38μm min

Type FTC12：Plug (Cable-relay type)

Number of contacts: 06：6pin　10：10pin　12：12pin　20：20pin

FTC Series
