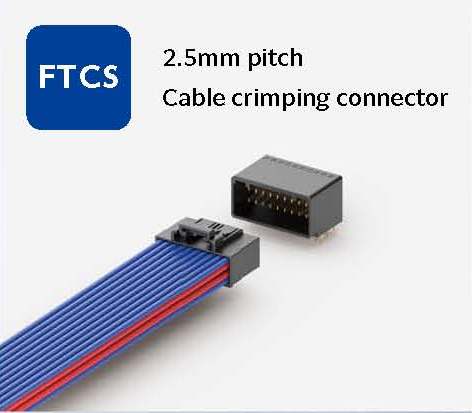

FTCS Series 2.5mm Pitch Connector for discrete Cable – Two Cable Crimpable type
▶This connector allows two cables to be crimped into one contact.
▶The crimped contact of the cable can be mounted anywhere on the housing.
▶By crimping two cables, space is saved and power supply can be transferred between the connectors.
▶Twin-Leaf Pinching 2 point contact structure prevents contact buckling and improves reliability with stable contact force.
▶The receptacle side connector has lock type (FTCS02). The plug side connector has straight type(FTCS11), right angle type (FTCS11) and cable relay type (FTC12).
▶FTCS has the same features as FTC, and has been made smaller to 2.5mm pitch.
▶The FTCS panel mounting structure allows it to be fixed in any position.
【Type】FTCS02:Receptacle (Cable side connector) with lock type
【Number of contacts】06:6 pin 12:12 pin 16:16 pin 20:20 pin
【Type】FTCS11:Plug (PCB side connector)
【Number of contacts】 (S type) 06:6 pin 12:12 pin 20:20 pin
(L type) 06:6 pin 12:12 pin 16:16 pin 20:20 pin
【Contact tail style】S:Straight L:Right angle
【Gold plating thickness】B:0.1μm min F:0.38μm min
【Type】FTCS12:Plug (Cable-relay type)
【Number of contacts】06:6 pin 12:12 pin 20:20 pin
【Style】P:Panel mount type
