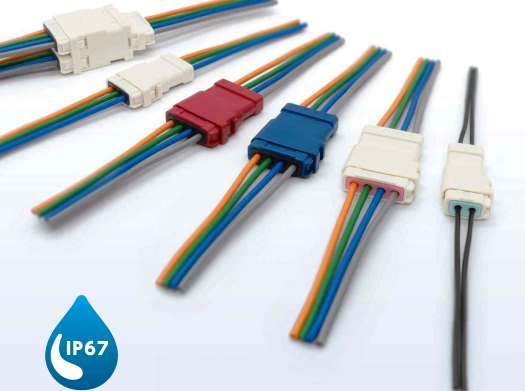

FW Series 5.0mm Pitch Waterproof IP67 Crimp type Connector

▶ The smallest class external dimensions with 5.0mm pitch waterproof connector.
▶ Stable connection design of 3 point contact structure having same shape contacts on the plug side and the receptacle side.
▶ The crimp applicator can be used in common because the crimp contact on the plug side and the receptacle side have the same shape.
▶ Highly reliable design with an effective mating length of 1.5mm (0.059”).
▶ The cable seal and the seal ring are built in the connector housing.
▶ The locking mechanism is robust and has a click feeling.
▶ Connector housing colors are set to 3 colors of white, red, and blue.
▶ Cable seal colors are set to 3 colors, black, light blue, and pink, according to the cable covering outer diameter.
▶ Dummy pins for closing the cable insertion hole are available. Dummy pin color are set to 2 color

Type: FWP01 Receptacle (Cable-relay connector) · FWP11 Plug (Cable-relay connector)

Number of contacts: 2pin, 3pin, 4pin

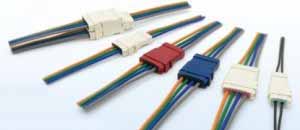

FW Series
