Gull Wing Sockets page 1 (1-50 PN.s) · Loranger

  • Kelvin, Double Duty Kelvin, and Non Kelvin

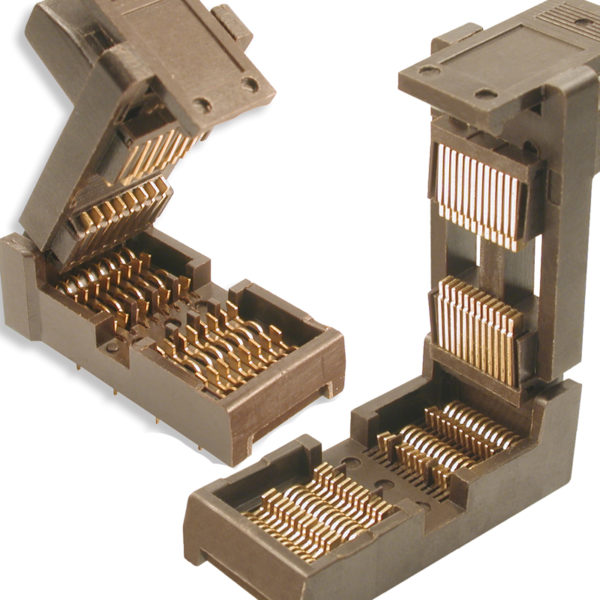

  • Zero Insertion Force Clam Shell Design
  • Non-Magnetic Socket Options Available
  • Accurate, Tightly-controlled Package Fit
  • Optional Case Contacts
  • Optional Heat Sinking
  • Fine Pitches
  • Contact Wiping Action for Reliable Connection

CATALOG

Categories: , , Tags: , , , , , , , , , , , , , , , , , , , , , , , ,

Description

Gull Wing Sockets
Design Features

Loranger International Corporation designs and manufactures burn-in and test sockets, printed circuit boards and environmental chamber systems for the electronics manufacturing industry.
Loranger International Corporation sockets are optimized for today’s small, fine pitch electronic packages, as well as for older style packages. Loranger International Corporation burn-in and test sockets are used worldwide in programs including defense, guidance, automotive, music, communication and space exploration.

P/N Pkg Type Pkg Name I/O Pitch (in) Pkg
Body L (in)		 Pkg
Body W (in)		 Pkg
H/T (in)		 Socket Style
04107 101 X215 Gull Wing Gull Wing 10 0.120 1.250 1.250 0.500 ClamShell
04357 301 6218A Gull Wing pDIP 23 23 0.070 0.472 1.142 0.128 ClamShell
04127 161 6217 Gull Wing Gull Wing 16 0.100 1.000 1.000 0.200 ClamShell
04126 096 X217 SO SO 96 0.100 7.545 0.970 0.205 ClamShell
04352 091 X215 SOIC SOIC 9 0.000 0.984 0.916 0.217 ClamShell
04352 091 X218A SOIC SOIC 9 0.000 0.984 0.916 0.217 ClamShell
04230 151 6215 TO TO-263 18 0.055 0.364 0.850 0.173 ClamShell
04237 151 1218A KTC KTC 15 0.050 0.380 0.770 0.075 ClamShell
04237 151 6218B KTC KTC 15 0.050 0.380 0.761 0.075 ClamShell
04115 441 6217 QFP QFP 44 0.050 0.650 0.650 0.120 ClamShell
04115 441 X218A QFP QFP 44 0.050 0.650 0.650 0.197 ClamShell
03661 032 6215 D-3 3 0.215 0.590 0.628 0.198 OpenTop
04352 171 6217 HSOP16 SOT822-1 17 0.000 0.433 0.626 0.138 ClamShell
04350 201 X217 SO SO 20 0.050 0.340 0.610 0.074 ClamShell
04288 101 X215 PG HDSOP 10 1 10 0.045 0.256 0.606 0.090 ClamShell
04288 221 X215 PG HDSOP 22 1 22 0.045 0.591 0.606 0.090 ClamShell
04126 161 X215 SO SO 16 0.100 0.926 0.571 0.182 ClamShell
04070 161 X217 Gull Wing SOIC 8 8 0.050 0.230 0.539 0.140 ClamShell
04270 161 X217 Gull Wing SOIC 8 8 0.050 0.230 0.539 0.140 ClamShell
04106 061 X215 Gull Wing Gull Wing 6 0.163 0.500 0.535 0.125 ClamShell
03794 031 X217 Gull Wing Gull Wing 3 0.000 0.530 0.530 0.157 ClamShell
04352 231 X215 SOP23 SOP23 23 0.000 1.142 0.472 0.124 ClamShell
03337 321 X2X8E HIPSO20 20 0.050 0.627 0.433 0.134 ClamShell
04333 471 6217 Gull Wing PwSSO-46 47 0.020 0.626 0.433 0.130 ClamShell
04335 361 X215 SOT SOT 36 0.026 0.626 0.433 0.132 ClamShell
04337 201 6215 SOIC 20L-SOIC 20 0.050 0.626 0.433 0.132 ClamShell
04451 171 X218A SOP SOP 17 0.030 0.370 0.425 0.053 ClamShell
04452 181 X217 SOP SOP 18 0.030 0.370 0.425 0.053 ClamShell
04452 201 X218A SOP SOP 20 0.030 0.370 0.425 0.053 ClamShell
04352 081 6217 SOIC SOIC 8 0.000 0.845 0.415 0.130 ClamShell
07815 SKT ASSY Gull Wing VOLT REG 7 0.100 0.415 0.415 0.122 ClamShell
04142 021 X217 Gull Wing SOT 2 0.000 0.296 0.406 0.068 ClamShell
04142 031 X217 Gull Wing SOT 2 0.000 0.296 0.406 0.068 ClamShell
03337 321 6215 SOIC 32L-SOIC 32 0.050 0.840 0.400 0.065 ClamShell
04352 071 X215 SCD072 SCD072 7 0.000 0.830 0.400 0.130 ClamShell
04358 161 X215 Gull Wing GULL WING 16 0.047 0.390 0.398 0.091 ClamShell
04245 051 6215 PSMP PSMP 6 0.067 0.412 0.395 0.175 ClamShell
04246 041 6215 P-TO263-32 4 0.100 0.403 0.394 0.173 ClamShell
04245 051 6218A D2PAK 5L D2PAK 5 0.067 0.591 0.386 0.157 ClamShell
04113 331 X217 SP6T 33 0.030 0.383 0.383 0.068 ClamShell
04237 151 6215 KTC KTC 15 0.050 0.770 0.380 0.075 ClamShell
04239 091 1218A KTA KTA 9 0.075 0.770 0.380 0.075 ClamShell
04239 091 6215 KTA KTA 10 0.075 0.770 0.380 0.075 ClamShell
04354 171 X217 Gull Wing SOIC 16 17 0.031 0.295 0.370 0.138 ClamShell
03337 321 6218G HIP SO-10 10 0.050 0.375 0.367 0.136 ClamShell
04127 081 X215 SOIC 8 PIN WIDE 8 0.100 0.442 0.362 0.185 ClamShell
04137 071 6217 Power Flex POWER FLEX 8 0.050 0.355 0.355 0.075 ClamShell
04237 071 6215 KTN KTN 8 0.050 0.370 0.355 0.075 ClamShell
04238 051 6215 KTG 6 0.067 0.370 0.355 0.075 ClamShell
04240 031 6215 KTE 4 0.100 0.370 0.355 0.075 ClamShell
