LGA (Land Grid Array) Sockets page 2 (51-100 PN.s) · Loranger

  • Designed to Connect to Packages for Test and Burn-in
  • Surface-mount Sockets for Pitches 0.25mm and greater
  • 30 Grams per Contact Normal Force Assures good contact with High Hertz-force Concentration
  • Socket Contact Wipes Diameter of Package Land
  • Lowest Profile Design and Smallest Footprint Increase Socket Density
  • Surface-mount Design “Irons Out” Coplanarity Issues Reducing Need for Extra Board Layers
  • Sockets Accommodate Ceramic, Plastic Over-molded, Glob Top, Tape, Metal Heat Sink and Super BGA/LGA Packages
  • Handler Compatible via Guideplate Adapter Kit

CATALOG

Categories: , , Tags: , , , , , , , , , , , , ,

Description

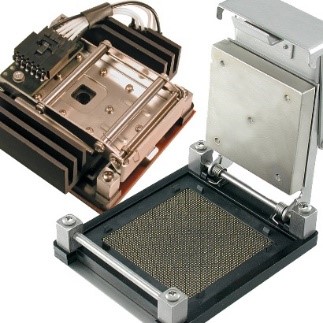

LGA (Land Grid Array) Sockets
Design Features

Loranger International Corporation designs and manufactures burn-in and test sockets, printed circuit boards and environmental chamber systems for the electronics manufacturing industry.
Loranger International Corporation sockets are optimized for today’s small, fine pitch electronic packages, as well as for older style packages. Loranger International Corporation burn-in and test sockets are used worldwide in programs including defense, guidance, automotive, music, communication and space exploration.

P/N Pkg Type I/O Pitch (mm) Pkg
Body L (mm)		 Pkg
Body W (mm)		 Pkg
H/T (mm)		 Array Socket Style
060SQ 025J6617 LGA 49 0.00 6.00 6.00 0.80 Various Clamshell
090SQ 056L6617 LGA 56 0.80 9.00 9.00 1.10 8 x 8, D ClamShell
D0706 059J6617 LGA 59 0.50 7.04 6.04 1.00 13 on 2, 9 ClamShell
110SQ 034L6617 LGA 61 1.27 11.02 11.02 1.91 11 x 11, D ClamShell
110SQ 046L6617 LGA 61 1.27 11.02 11.02 1.91 11 x 11, D ClamShell
110SQ 061J6617 LGA 61 1.27 11.02 11.02 3.00 11 x 11, D ClamShell
135130061J6617 LGA 61 1.27 13.08 13.08 2.92 11 x 11, D ClamShell
03719 641 6217 LGA 64 0.80 13.00 13.00 1.36 16 on 2, 1 ClamShell
060SQ 064J6617 LGA 64 0.65 6.00 6.00 0.81 8 x 8 Clamshell
130100064J6617 LGA 64 1.00 13.00 10.00 1.10 8 x 8 ClamShell
050SQ 065J6617 LGA 65 0.40 5.00 5.00 0.75 Special D ClamShell
110070065J6617 LGA 65 0.50 11.00 7.00 1.15 19on2, 13o ClamShell
100SQ 072J6617 LGA 72 1.00 10.00 10.00 2.56 10 x 10, D ClamShell
080SQ 078U6617 LGA 78 0.75 8.00 8.00 0.95 10 x 10, D ClamShell
100SQ 079J6617 LGA 79 1.00 10.00 10.00 2.56 10 x 10, D ClamShell
050SQ 081J6617 LGA 81 0.50 5.00 5.00 0.85 10 x 10, D ClamShell
428127081L6617 FOUR CHANNEL TRANSCEIVER 81 1.27 42.82 16.30 15.46 9 x 9 ClamShell
100SQ 041J6617 LGA 84 1.00 10.00 10.00 2.56 10 x 10, D ClamShell
050058090J6617 LGA 90 0.45 5.00 5.85 0.81 13 x 11, D ClamShell
106098090J6617 LGA 90 1.00 10.60 9.80 1.45 9 x 10 ClamShell
090SQ 100U6618A LGA 100 0.80 9.00 9.00 3.18 10 x 10 ClamShell
160SQ 100J6617 LGA 100 1.27 16.00 16.00 1.87 10 x 10 ClamShell
170169036J6617 LGA 100 0.80 17.06 16.95 1.22 10 x 10 ClamShell
140100044J6618B LGA 110 1.00 14.00 10.00 2.56 14 x 10, D ClamShell
260207114U6617 LGA 114 0.75 26.00 20.75 1.70 Special D ClamShell
072SQ 116J6617 LGA 116 0.60 7.20 7.20 0.51 11 x 11, D ClamShell
100SQ 128U6617 LGA 128 0.50 10.00 10.00 1.00 Special D ClamShell
112090132J6617 LGA 132 0.00 11.20 9.00 1.35 11 x 12 ClamShell
140100140J6617 LGA 140 1.00 14.00 10.00 2.56 14 x 10, D ClamShell
050058143J6617 LGA 143 0.45 5.00 5.85 0.81 13 x 11 ClamShell
130SQ 144L6617 LGA 144 1.00 13.00 13.00 1.40 12 x 12, D ClamShell
248SQ 160L6617 LGA 160 1.27 24.87 24.87 0.64 Special D ClamShell
250210165J6617 LGA 165 1.27 25.00 21.00 2.40 15 x 11 ClamShell
169SQ 168J6618B LGA 168 1.27 16.99 16.99 2.56 13 x 13, D ClamShell
130SQ 176U6617 LGA 176 0.50 13.00 13.00 1.00 Special D ClamShell
150SQ 196L6617 LGA 196 1.00 15.00 15.00 2.02 14 x 14 ClamShell
170SQ 228LAPKB LGA 228 1.00 17.00 17.00 2.77 16 x 16, D ClamShell
210SQ 228L6617 LGA 228 1.00 0.00 0.00 0.00 16 x 16, D ClamShell
210SQ 228P6617 LGA 228 1.00 21.00 21.00 2.77 16 x 16, D ClamShell
210SQ 255L6617 LGA 255 1.00 21.00 21.00 2.82 16 x 16, D ClamShell
210SQ 255P6617 LGA 255 1.27 21.00 21.00 2.82 16 x 16 ClamShell
170SQ 256L6617 LGA 256 1.00 17.00 17.00 1.12 16 x 16 ClamShell
270SQ 256L6617 LGA 256 1.27 27.03 27.03 1.53 20 x 20, D ClamShell
270SQ 272L6617 LGA 272 1.27 27.00 27.00 1.53 20 x 20, D ClamShell
375SQ 312L6617 LGA 312 1.27 37.50 37.50 0.91 29 x 29, D ClamShell
250SQ 360L6617 360 1.27 25.00 25.00 1.98 19 x 19, D ClamShell
250SQ 360L6618A 360 1.27 25.00 25.00 2.03 19 x 19, D ClamShell
250SQ 360L6618B 360 1.27 25.00 25.00 2.03 19 x 19, D ClamShell
250SQU360L6618 LGA 360 1.27 25.00 25.00 1.98 18 x 18, D ClamShell
04481 384 661A LGA 384 1.02 32.51 35.46 0.90 23 x 23, D ClamShell
