LI NCM14500J 1s1p Rechargeable Li-Ion Battery 850 mAh with PCM

SPECIFICATIONS:

  • Typical Capacity: 850 mAh (0.2C, 2.75V discharge)
  • Nominal Voltage: 3.6 V
  • Standard Charge Current: 0.2 C
  • Max Charge Current: 1.0 C
  • Charge cut-off Voltage:  4.2 V
  • Maximum discharge current:  2.0 C
  • Discharge cut-off Voltage: 2.75 V
  • Operating Temperature: +10°C to +45°C
  • Weight Approx: 30 gr.

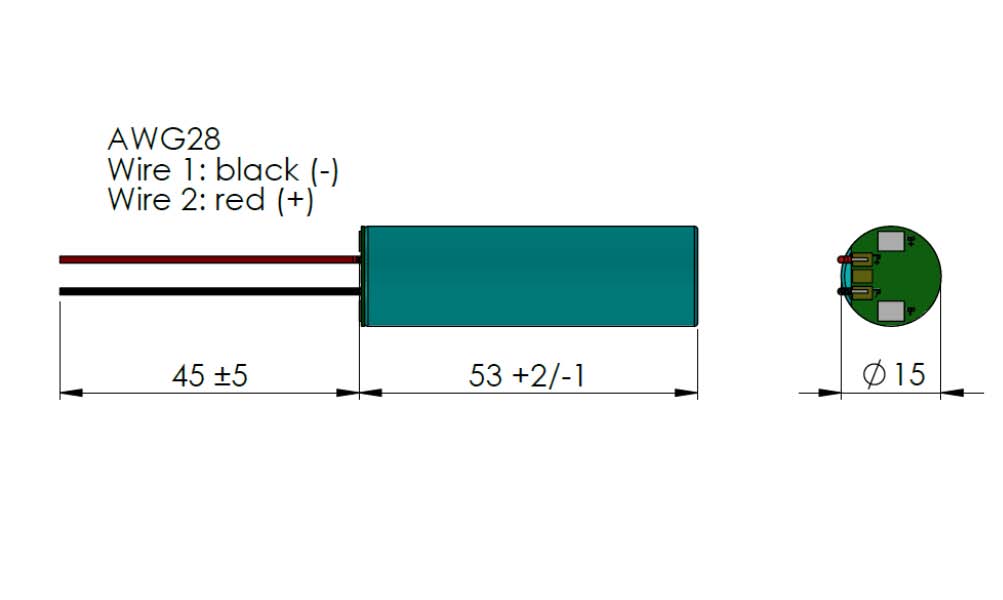

  • Dimension: 16×53 mm
  • with 50mm+/-5mm cable AWG28
  • UL1642
  • UN38.3
  • IEC62133:2017

LI NCM14500J
