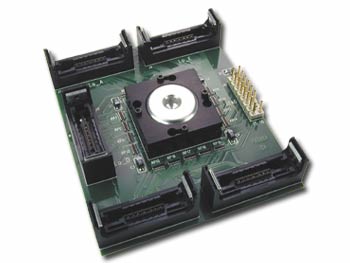

Logic Analyzer Adapters
Ironwood offers a number of adapters that support high speed probing using Agilent 16xxx or Tektronix TLA 7xx logic analyzers. These adapters incorporate vendor-specific interfaces and clean, controlled impedance signals. Ironwood received both Agilent and Tektronix certification for qualified partners.
Mounted in place of an IC device, Ironwood’s line of logic analyzer adapters eliminate the need to design debug features into target systems. Our modular designs offer the capability to remove the probe connections and choose between using a ZIF socket or one of our fast surface mount land sockets.
Real time, high speed analysis of target systems requires excellent signal integrity. Our pluggable components employ gold plated connections. Controlled impedance, vendor specific Mictor connectors are used and each signal’s integrity is maintained with high speed as the priority. All of these adapters incorporate high speed PCB design techniques to support state of the art analysis and timing of microprocessors.
| PART NUMBER |
RoHS | Top Package Code |
Top Pin Count |
Bottom Pin Count |
Top Interface |
Bottom Interface |
Device Specific |
| LA-BGA-750-Z-B-02 | Call* | BGA360A2 | 360 | 360 | Open Top Lever Socket | SMT Foot | yes |
| LA-BGA-MPC7445-Z-B-01 | Call* | BGA360A | 360 | 360 | GHz BGA socket | SMT Foot | yes |
| LA-BGA-MPC7447/48-Z-B-01 | Call* | BGA360A | 360 | 360 | GHz BGA socket | SMT Foot | yes |
| LA-BGA-MPC7448-S-B-01-HP | Call* | BGA360A | 360 | 360 | Female MGA Socket | SMT Foot | yes |
| LA-BGA-64130-S-B-01 | Call* | BGA388A | 388 | 388 | SMT Lands | SMT Foot | yes |
| LA-BGA-405GP-S-B-01 | Call* | BGA413A | 413 | 413 | SMT Lands | SMT Foot | yes |
| LA-BGA-8260-S-B-01 | Call* | BGA480B | 480 | 480 | SMT Lands | SMT Foot | yes |
| LA-BGA-8260-S-B-02 | Call* | BGA480B | 480 | 480 | SMT Lands | SMT Foot | yes |
| LA-BGA-8260-S-B-03 | Call* | BGA480B | 480 | 480 | SMT Lands | SMT Foot | yes |
| LA-BGA-MPC8270-Z-B-01 | yes | BGA480B | 480 | 480 | GHz BGA socket | SMT Foot | yes |
| PB-BGA-8260-04 | Call | BGA480 | 480 | 480 | MGA MALE PINS | MGA FEMALE Receptacle | yes |
| LA-BGA-7450-S-B-01 | Call* | BGA483A | 483 | 483 | SMT Lands | SMT Foot | yes |
| LA-BGA-MPC7457-Z-B-01 | Call* | BGA483A | 483 | 483 | GHz BGA socket | SMT Foot | yes |
| LA-BGA60C-DDRRAM-01 | Call* | BGA60C | 60 | 60 | SMT Lands | SMT Foot | yes |
| LA-BGA-FG680-S-B-01 | Call* | BGA680C | 680 | 680 | SMT Lands | SMT Foot | yes |
| LA-BGA-MCP84-DDR2-01 | yes | BGA84 | 84 | 84 | SMT Lands | SMT Foot | yes |
| LA-BGA90C-SDRAM-01 | Call* | BGA90C | 90 | 90 | GHz BGA socket | SMT Foot | yes |
| LA-BGA92D-DDR2-SDRAM-01 | Call* | BGA92D | 92 | 92 | SMT Lands | SMT Foot | yes |
| LA-MPROBE-01 | Call* | N/A | N/A | N/A | N/A | N/A | yes |
| Devices Supported |
Equipment Supported |
Compatible Part 1 |
Compatible Part 2 |
Part Description |
| PowerPC 750 | Agilent/HP 166XXX, 167XXX, 165XXX | SK-BGA360A-Z-02 | SF-BGA360A-B-11 | Logic Analyzer Adapter |
| Motorola MPC7445 | Tektronix TLA700 Series | PB-BGA-MPC7445-Z-01 | SF-BGA360A-B-02 | Logic Analyzer Adapter |
| Motorola MPC7447 MPC7448 | Tektronix TLA700 Series | SF-BGA360A-B-72 | N/A | Logic Analyzer Adapter |
| Freescale MPC7448 | Agilent E8135A Inverse Assembler | LS-BGA360A-31 | SF-BGA360A-B-32 | Logic Analyzer Adapter |
| Galileo GT-64130 | Tektronix TLA700 Series | LS-BGA388A-01 | SF-BGA388A-B-02 | Logic Analyzer Adapter |
| IBM PowerPC 405GP | Tektronix TLA700 Series | LS-BGA413A-02 | SF-BGA413A-B-11 | Logic Analyzer Adapter |
| Motorola MPC8260 | Tektronix TLA700 Series | LS-BGA480B-02 | SF-BGA480B-B-11 | Logic Analyzer Adapter |
| Motorola MPC8260 | Tektronix TLA700 Series | LS-BGA480B-02 | SF-BGA480B-B-11 | Logic Analyzer Adapter |
| Motorola MPC8260 | Tektronix TLA700 Series | LS-BGA480B-02 | SF-BGA480B-B-11 | Logic Analyzer Adapter |
| Motorola MPC8270 | Tektronix P6860 | SG-BGA-6084 | SF-BGA480B-B-72f | Logic Analyzer Adapter |
| Motorola MPC8260 | Tektronix TLA700 Series | SF-BGA480B-B-02 | N/A | BGA Probe Board |
| Motorola MPC7450 | Tektronix TLA700 Series | LS-BGA483A-11 | SF-BGA483A-B-02 | Logic Analyzer Adapter |
| Motorola MPC7457 | Agilent 16700B Series | PB-BGA-MPC7457-Z-01 | SF-BGA483A-B-04 | Logic Analyzer Adapter |
| Infineon DDR Mobile RAM | Agilent/HP 16XXX | PB-BGA60C-DDRRAM-01 | SK-UGA10/60C-13 | Logic Analyzer Adapter |
| Xilinx FG680 | Tektronix TLA700 Series | LS-BGA680C-02 | SF-BGA680C-B-11 | Logic Analyzer Adapter |
| DDR2 | Tektronix TLA700 Series | none | none | Logic Analyzer Adapter |
| SDRAM | AMP mictor connectors | SF-BGA90C-B-62 | N/A | Logic Analyzer Adapter |
| SDRAM | Samtec ASP 65067-01 connectors | SF-BGA92D-B-62 | N/A | Logic Analyzer Adapter |
| Intel M-Probe Interposer | Tektronix TLA700 Series with Tek break-out board | N/A | N/A | Logic Analyzer Adapter |
