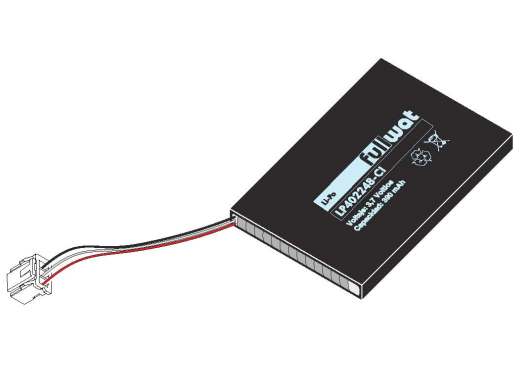

LP402248-CI – Rechargeable battery Li-Polymer 3.7V 390 mAh with PCM

SPECIFICATIONS:

  • Nominal Capacity: 390 mAh – 0.2C5A discharge, 25°C
  • Nominal Voltage: 3.7 V – Average Voltage at 0.2C 5A discharge
  • Standard Charge Current: 78mA – Working Temperature: 0~45°C
  • Max Charge Current: 390mA – Working Temperature: 0~45°C
  • Charge cut-off Voltage:  4.20 ± 0.05V – CC/CV
  • Constant discharge current:  780mA – Working Temperature: -10~60°C
  • Maximum discharge current:  780mA – Working Temperature: -10~60°C
  • Discharge cut-off Voltage 2.75V
  • Cell Voltage: 3.76~3.9V – When leave factory
  • Impedance:  ≤ 80mΩ AC 1KHz after 50% charge 25°C
  • Weight Approx: 10g
  • Storage Humidity: 65±20% RH
  • Dimension: 48x22x4 mm
