LP502243JU 1s1p Rechargeable Li-Ion Battery 430 mAh with PCM · Jauch Battery
LP502243JU 1s1p Rechargeable Li-Ion Battery 430 mAh with PCM
SPECIFICATIONS:
- Typical Capacity: 250 mAh (0.2C, 3.0V discharge)
- Nominal Voltage: 3.7 V
- Standard Charge Current: 0.2 C
- Max Charge Current: 0.5 C
- Charge cut-off Voltage: 4.2 V
- Maximum discharge current: 2.0 C
- Discharge cut-off Voltage: 3.0 V
- Operating Temperature: +10°C to +45°C
- Weight Approx: 13 gr.

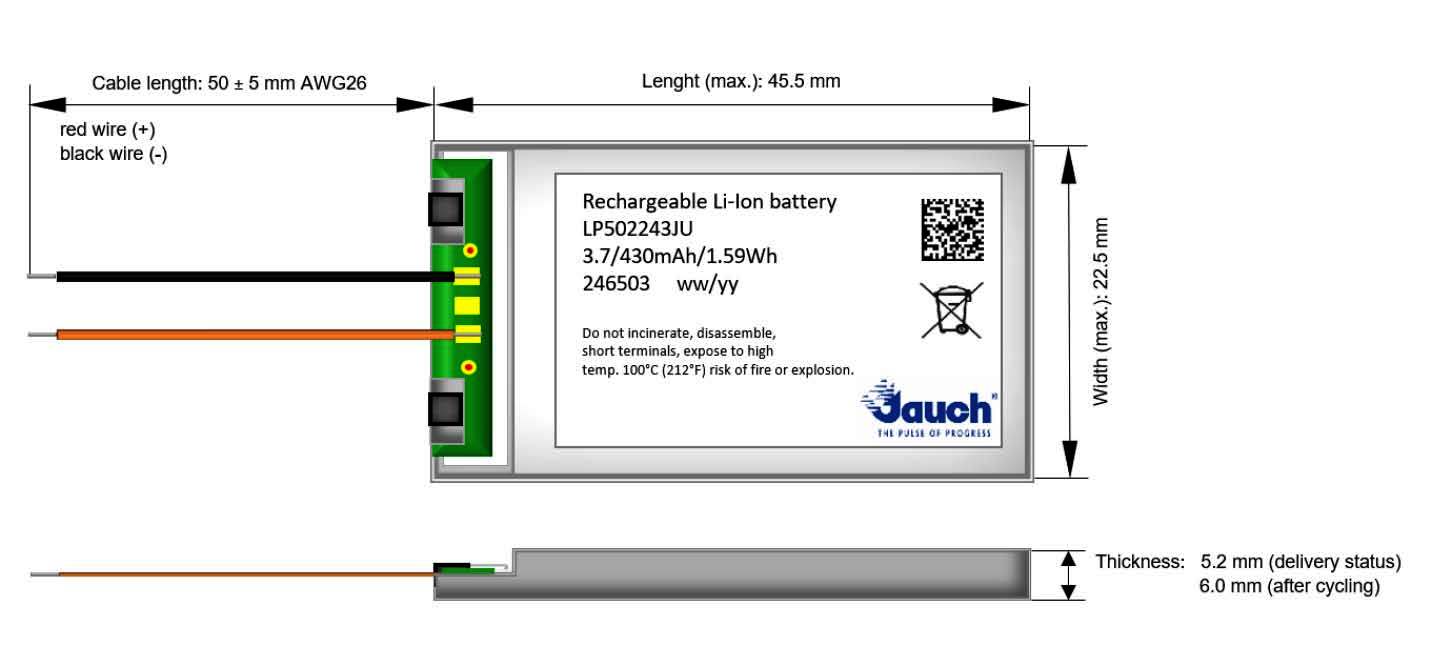

- Dimension: 5.2×22.5×45.5 mm
- with 50mm+/-5mm cable AWG26
- UL1642
- UN38.3
