LP705176JS 1s1p Rechargeable Li-Ion Battery 3000 mAh with PCM

SPECIFICATIONS:

• Typical Capacity: 3000 mAh (0.2C, 3.0V discharge)
• Nominal Voltage: 3.7 V
• Standard Charge Current: 0.2 C
• Max Charge Current: 0.5 C
• Charge cut-off Voltage:  4.2 V
• Maximum discharge current:  2.0 C
• Discharge cut-off Voltage: 3.0 V
• Operating Temperature: +10°C to +45°C
• Weight Approx: 70 gr.

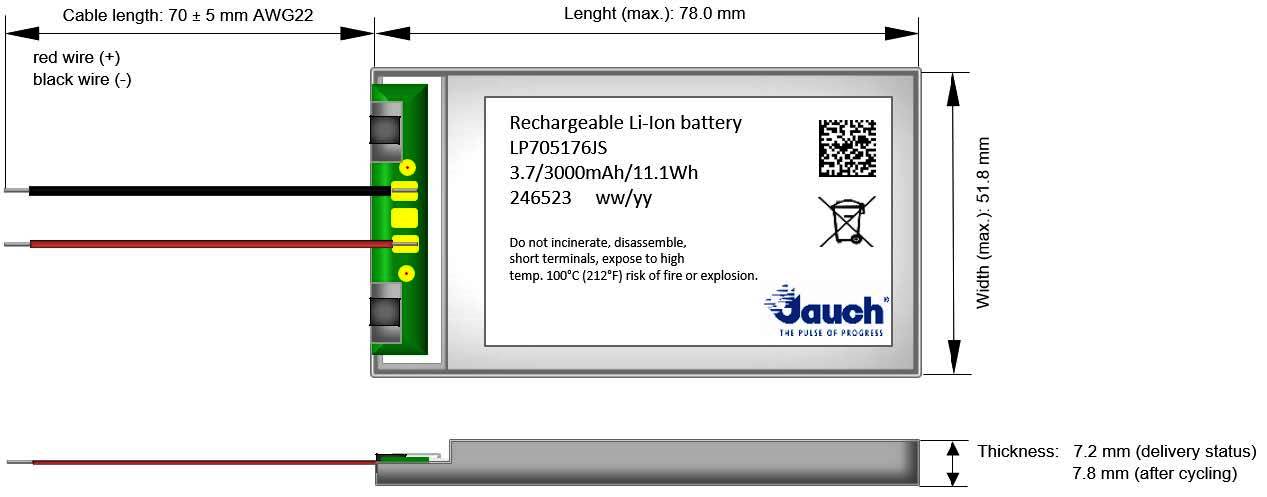

• Dimension: 7.2×51.8×78 mm
• with 70mm+/-5mm cable AWG26
• UL1642
• UN38.3

LP705176JS
