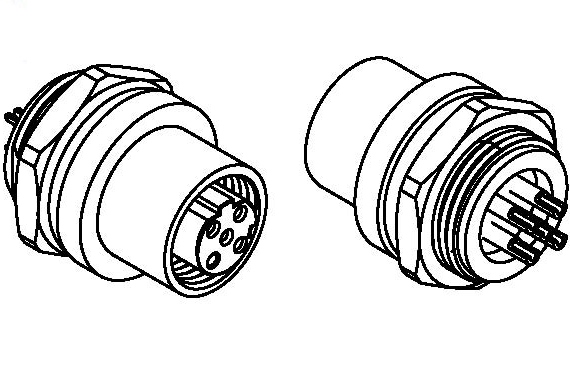

A12x-M2xxCSF – D12D-M2xxCSF

M12 A and D-Code, Female Panel Connector, All Plastic, Rear Mount, Circular Flange with Solder Bucket Pin

Features:

• Current rating: 1.5 – 4A
• Waterproof rating: IP66-68
• Temperature Range: -25°C to +85°C
• Durability: > 500 cycles
• Nr. of Pin A-Coding: 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
• Nr. of Pin D-Coding: 2, 3, 4, 5

Model A-Coding: A12D-M202CSF, A12D-M203CSF, A12D-M204CSF, A12D-M205CSF, A12N-M206CSF, A12N-M1207CSF, A12N-M208CSF, A12I-M209CSF, A12I-M210CSF, A12I-M211CSF, A12I-M212CSF

Model D-Coding: D12D-M202CSF, A12D-M203CSF, A12D-M204CSF, A12D-M205CSF
