M12 A, B, D and X-Coding Female Panel-Mounting Connector – Holin

A12x-M2xxHSR, B12D-M2xxHSR, D12D-M2xxHSR and X12I-M208HSR

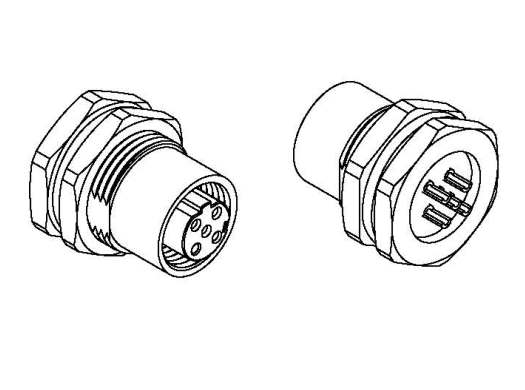

M12 A, B, D and X-Coding Female Connector Rear Mount Hex Flange with Solder Bucket Pin

Features:

  • Current rating: 1.5 to 12A
  • Waterproof rating: IP66-68
  • Temperature Range: -25°C to +85°C
  • Nr. of Pin A-Coding: 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17
  • Nr. of Pin B-Coding: 3, 4, 5
  • Nr. of Pin D-Coding: 3, 4, 5
  • Nr. of Pin X-Coding: 8

Model A-Coding: A12D-M202HSR, A12D-M203HSR, A12D-M204HSR, A12D-M205HSR, A12N-M20XHSR (6,7,8), A12I-M2XXHSR (09,10,11,12,13,14,15,16,17)

Model B-Coding: B12D-M203HSR, B12D-M204HSR, B12D-M205HSR

Model D-Coding: D12D-M203HSR, D12D-M204HSR, D12D-M205HSR

Model X-Coding: X12I-M208HSR

A12x-M2xxHSR, B12D-M2xxHSR, D12D-M2xxHSR and X12I-M208HSR
