A12x-M1xxCSF M12 A-Code Male Panel Connector Front Mount Round Flange with Solder Bucket Pin · Holin

A12x-M1xxCSF

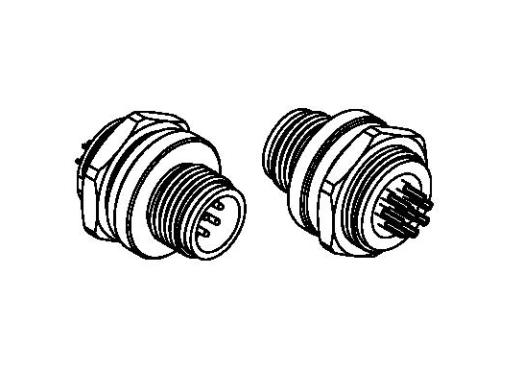

M12 A-Code, Male Panel Connector, Front Mount, Round Flange with Solder Bucket Pin

Features:

  • Current rating: 1.5 – 4A
  • Waterproof rating: IP66-68
  • Temperature Range: -25°C to +85°C
  • Durability: > 500 cycles
  • Nr. of Pin A-Coding: 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
  • Nr. of Pin B-Coding: 3, 4, 5
  • Nr. of Pin X-Coding: 8

Model A-Coding: A12D-M102CSF, A12D-M103CSF, A12D-M104CSF, A12D-M105CSF, A12N-M106CSF, A12N-M107CSF, A12N-M108CSF, A12I-M109CSF, A12I-M110CSF, A12I-M111CSF, A12I-M112CSF

A12x-M1xxCSF
