The M23 connector is our new series connector, threaded coupling. The shell material is zinc alloy with nickel plating, insert material is PA66. The shell diameter is 26.5mm (the panel hole cutout diameter is 18mm).

The connector are used for cable to cable or cable to panel-mount connections. Each side can be male or female contact, (plug or socket versions).

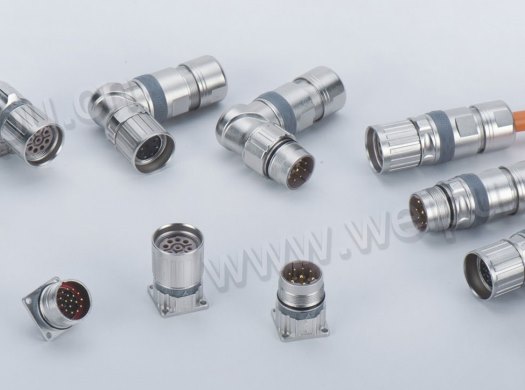

There are four different type: plug, square flange receptacke, angled plug and angled square flange socket.

Features:

1. Shell diameter (the panel hole cutout size): 26.5mm
2. Number of contacts: 9-19 for Signal and 6-8 for Power
3. Rated current and V: 8-20Amp, 150-300 (AC, V) for Signal and 8-28Amp, 300-600 (AC, V) for Power.
4. Maiting Cycle: 1000
5. IP rating: IP67
6. CE, RoHS approval

Applications:

These M23 connectors is mainly used on all kinds of machines and equipment for servo motor.

Part Nr.s (and description):

M23 for Power: Colour: Grey (standard) – Black, Orange, Blue, green, Purple (special order):

M23DJ_TK_ _ _ Male contact cable connector, Cable outer diameter range: I 4-8mm, II 8-13 (standard), III 12-17mm,;  Shield & Unshielded; M23DK_TK_ _ _ Female contact cable connector; M23DJ_Z_ Male contact square flange receptacle; M23DK_Z_ Female contact square flange receptacle; M23DJ_TL_ _ _ Male contact angled cable connector; M23DK_TL_ _ _ Female contact angled cable connector; M23DJ_ZL_ Male contact angled square flange receptacle; M23DK_ZL_ Female contact angled square flange receptacle.

28 Amp Crimp Contact: YJ2-24-1.2.5AU (AWG 18-23) Male contact; YJ2-24-1.4.5AU (AWG 13-11) Male contact; YK2-22-2.2.5AU (AWG 18-23) Female contact; YK2-22-2.4.5AU (AWG 13-12) Female contact.

M23 for Signal: Colour: Grey (standard) – Black, Orange, Blue, green, Purple (special order):

M23SJ_TK_ _ _ Male contact cable connector, Cable outer diameter range: I 4-8mm, II 8-13 (standard), III 12-17mm,;  Shield & Unshielded; M23KK_TK_ _ _ Female contact cable connector; M23SJ_Z_ Male contact square flange receptacle; M23SK_Z_ Female contact square flange receptacle; M23SJ_TL_ _ _ Male contact angled cable connector; M23SK_TL_ _ _ Female contact angled cable connector; M23SJ_ZL_ Male contact angled square flange receptacle; M23SK_ZL_ Female contact angled square flange receptacle.

8 Amp Crimp Contact: YJ1-17-0.56AU (AWG 28-19) Male contact; YJ1-17-1.0AU (AWG 26-17) Male contact; YJ1-17-1.5AU (AWG 17-16) Male contact; YK1-16.4-0.56AU (AWG 28-19) Female contact; YK1-16.4-1.0AU (AWG 26-17) Female contact; YK1-16.4-1.5AU (AWG 17-16) Female contact;

10 Amp Crimp Contact: YJ1.5-16.6-1.0AU (AWG 26-17) Male contact; YK1.5-16.3-0.5AU (AWG 26-17) Female contact; YK1.5-16.3-1.0AU (AWG 19-17) Female contact;

20 Amp Crimp Contact: YJ2-16.8-2.5AU (AWG 18-13) Male contact; YK2-16.6-2.5AU (AWG 19-17) Female contact;

Crimp Tool: CT-W26/12 (0.13-3.33mmq) / CT-W32/20 (0.03-0.52mmq)
