Microwave and Hybrid Sockets page 1 (1-50 PN.s) · Loranger

  • For Heat Sinks and Special Lead Configurations
  • Standard and Custom Designs for Variety of Package Sizes, including Custom Hybrids & Microwave Packages

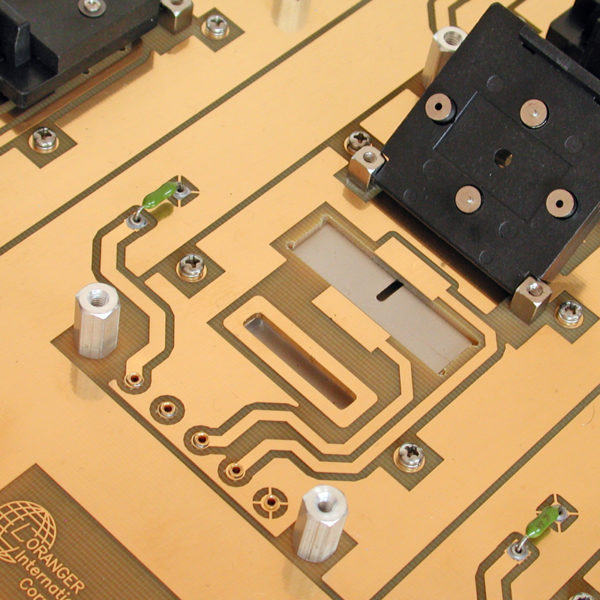

  • Stand-alone Sockets and Integrated 50Ω Impedance Designs
  • Prototype Test Boards for Oscillation Elimination

CATALOG

Categories: , , Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Description

Microwave and Hybrid

Design Features

Loranger International Corporation designs and manufactures burn-in and test sockets, printed circuit boards and environmental chamber systems for the electronics manufacturing industry.
Loranger International Corporation sockets are optimized for today’s small, fine pitch electronic packages, as well as for older style packages. Loranger International Corporation burn-in and test sockets are used worldwide in programs including defense, guidance, automotive, music, communication and space exploration.

P/N Pkg Type Pkg Name I/O Pitch (in) Pkg
Body L (in)		 Pkg
Body W (in)		 Pkg
H/T (in)
017SQ 004J6617 Microwave Microwave 4 0.000 0.070 0.070 0.048
021SQ 004J6617 Microwave Microwave 4 0.000 0.085 0.085 0.060
03161 192 6215 Hybrid QUAD Hybrid QUAD 19 0.095 0.000 0.000 0.000
03161 242 X2X5 24 0.100 0.000 0.000 0.000
03161 262 6215 Hybrid QUAD Hybrid QUAD 26 0.090 0.000 0.000 0.000
03322 041 6215 TSSOP 2 0.000 0.104 0.104 0.030
03326 041 6215 KUKJE KUKJE 4 0.000 0.070 0.070 0.045
03336 041 6215A HPAC HPAC-70GT 4 0.000 0.109 0.109 0.070
03336 041 6218E MAR-8SM MAR-8SM 4 0.000 0.190 0.184 0.060
03336 041 X218B 4 0.000 0.000 0.000 0.000
03336 041 X2X8C HP#55 HP#55 4 0.000 0.000 0.000 0.000
03338 041 6215 ODS ODS-844 4 0.000 0.050 0.260 0.270
03338 041 6218B 4 0.000 0.050 0.260 0.280
03338 041 6218D 4 0.000 0.550 0.550 0.280
03338 041 X218A 4 0.000 0.000 0.000 0.000
03339 041 6215 M-107, -123, -126, -135, -139, -140, -141, -150 w/carrier an 4 0.000 0.430 0.430 0.160
03341 081 6215 ODS ODS-801 4 0.100 0.000 0.000 0.000
03342 081 X2X8 ODS M53 4 0.000 0.536 0.250 0.134
03342 101 6215 ODS ODS-821, ODS-821 5 0.200 0.536 0.250 0.134
03343 081 6215 ODS ODS-819 3 0.000 0.754 0.250 0.135
03344 061 6215 ODS ODS-115 -180 3 0.000 0.255 0.255 0.140
03347 031 6218A 2-LD 3 0.000 0.500 0.400 0.160
03347 031 6218B 3 0.000 0.675 0.385 0.143
03347 031 6218C 3 0.000 1.340 0.765 0.143
03347 031 6218D 3 0.000 1.030 0.800 0.183
03347 051 6215 M-112, 115, 036, 038, 336, 338, 040, 041, 042, 043, 119, 187 5 0.000 0.900 0.399 0.230
03347 051 6218A Microwave Microwave M-259 3 0.000 0.650 0.385 0.230
03348 031 6215 SA3085, SA3088 3 0.000 0.400 0.400 0.104
03348 031 6218A RF RF 3 0.000 0.400 0.500 0.140
03348 031 X2X8 RF RF 3 0.000 0.400 0.500 0.100
03349 031 6215 Microwave Microwave SA-374 or -368 3 0.000 0.250 0.250 0.086
03349 031 X218B Microwave HP XTR Stud 3 0.000 0.230 0.230 0.000
03349 031 X218C Microwave HPAC-200 GB-GT 3 0.000 0.800 0.200 0.165
03349 031 X218E Microwave 3 0.000 0.800 0.230 1.650
03349 031 X2X8 Microwave HPAC-200 GB/GT 3 0.000 0.225 0.200 0.105
03349 031 X2X8D Microwave 3 0.000 0.800 0.230 1.850
03352 111 6215 11 0.075 1.370 1.370 0.165
03355 051 6215 5 0.435 0.680 0.400 0.200
03355 051 6218A 5 0.425 1.340 0.586 0.195
03357 031 6215 M-124, -170, -171 3 0.000 0.800 0.250 0.155
03358 031 6215 M-151 3 0.000 0.800 0.250 0.250
03358 031 6218A 3 0.000 0.800 0.230 0.150
03361 051 ASSY 5 0.000 0.510 0.385 0.155
03366 031 ASSY H-P H30X H30X 3 0.000 0.490 0.100 0.030
03366 051 ASSYB H-P PlanPak SM-25XX 5 0.000 0.250 0.250 0.120
03372 061 ASSYA 5 0.000 0.532 0.246 0.125
03372 091 ASSY 8 0.000 0.510 0.385 0.150
03380 031 X215 Microwave and Hybrid Microwave and Hybrid 3 0.000 0.550 0.180 0.125
03381 051 X215 Microwave and Hybrid INP-648-4E 5 0.312 1.340 0.385 0.148
03382 031 X215 Microwave and Hybrid Microwave and Hybrid 3 0.000 0.780 0.370 0.143
