Microwave and Hybrid Sockets page 3 (101-150 PN.s) · Loranger

For Heat Sinks and Special Lead Configurations
Standard and Custom Designs for Variety of Package Sizes, including Custom Hybrids & Microwave Packages
Stand-alone Sockets and Integrated 50Ω Impedance Designs

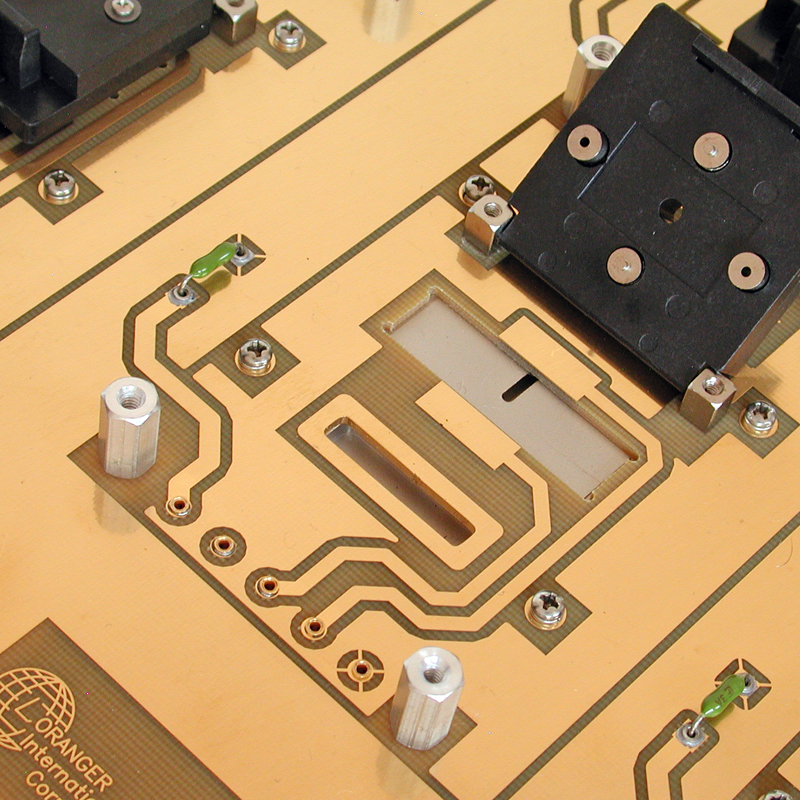

Prototype Test Boards for Oscillation Elimination

Categories: Burn-in and Test Sockets, Loranger International Corp., Microwave and Hybrid Tags: ABB HAFO, Burn-in and Test Sockets, clamshell, CLCC, Dual Oscillator, H-P H30X, H-P PlanPak, HP XTR Stud, HP#55, HPAC-200 GB-GT, HPAC-70GT, HSOP, Hybrid QUAD, Hybrid Sockets, IF AMP, INP-648-4E, Kelvin Contacts, KUKJE, LO Genterator, Low Profile and Small Footprint, M-036, M-038, M-040, M-041, M-042, M-043, M-107, M-115, M-119, M-123, M-126, M-135, M-139, M-140, M-141, M-150 M-112, M-151, M-170, M-171, M-187 M-124, M-336, M-338, M53, MAR-8SM, MCM, Microwave M-259, Microwave Packages, MRF 428, Multiplier/IF Amp, NG 56 Series, NI400, ODS, ODS-821, ODS-844, OpenTop, Optional Heat Sinks, PLL Converter Module, QFP, Receiver, Reg/Mode, RF, SA3085, SA3088, Secure Connection, SOP, ssdi-MILPACK III, SW/LNA, Switch/Diplexer, Switch/Limiter, TapePak, TO-270, Transmitter, TSSOP, Veii Sum, Voltage Controlled Oscillator

Description

Description

Microwave and Hybrid

Design Features

Loranger International Corporation designs and manufactures burn-in and test sockets, printed circuit boards and environmental chamber systems for the electronics manufacturing industry.
Loranger International Corporation sockets are optimized for today’s small, fine pitch electronic packages, as well as for older style packages. Loranger International Corporation burn-in and test sockets are used worldwide in programs including defense, guidance, automotive, music, communication and space exploration.

P/N	Pkg Type	Pkg Name	I/O	Pitch (in)	Pkg Body L (in)	Pkg Body W (in)	Pkg H/T (in)
03752 052 6215	Receiver	Receiver	5	0.075	1.310	1.240	0.207
03753 092 6215	Transmitter	Transmitter	9	0.075	1.970	1.030	0.207
03754 102 6215	Switch/Limiter	Switch/Limiter	10	0.075	2.240	1.380	0.347
03756 082 6215	Reg/Mode	Reg/Mode	8	0.050	1.845	1.370	0.247
03758 032 6215	Dual Oscillator	Dual Oscillator	3	0.000	1.990	0.840	0.210
03759 082 6215	Dual Receiver	Dual Receiver	8	0.100	2.400	2.000	0.310
03759 092 6215	Dual Transmitter	Dual Transmitter	9	0.100	2.400	1.990	0.270
03760 072 6215	Transmit Drive	Transmit Drive	7	0.100	2.740	1.370	0.207
03761 032 ASSYA	PLL Converter Module	PLL Converter Module	3	0.000	0.000	0.000	0.000
03762 102 6218	Veii Sum	Veii Sum	10	0.100	2.760	1.000	0.210
03762 102 6218A	Veii Sum	Veii Sum	10	0.100	2.760	1.000	0.210
03763 032 6215	LO Genterator	LO Genterator	3	0.000	2.684	1.650	0.270
03763 052 6215	Switch/Diplexer	Switch/Diplexer	5	0.100	2.310	1.430	0.270
03763 092 6215	Transmit Drive	Transmit Drive	9	0.100	3.230	1.830	0.270
03764 072 6215	Veii Delta	Veii Delta	7	0.100	3.060	0.860	0.210
03764 072 X2X8	Veii Delta	Veii Delta	7	0.100	3.060	0.860	0.210
03765 042 6215	Voltage Controlled Oscillator	Voltage Controlled Oscillator	4	0.200	3.100	1.250	0.320
03766 052 6215	Oscillator	Oscillator	5	0.075	1.325	1.065	0.240
03767 032 ASSY	LO Genterator	LO Genterator	3	0.000	2.380	2.000	0.225
03767 132 6215	SW/LNA	SW/LNA	13	0.090	2.240	1.590	0.315
03767 162 6215A	SW/LNA	SW/LNA	16	0.090	2.240	1.590	0.294
03767 162 6215B	SW/LNA	SW/LNA	16	0.090	2.240	1.590	0.294
03768 032 6215A	IF AMP	IF AMP	3	0.000	1.110	1.010	0.330
03768 032 6215B	IF AMP	IF AMP	3	0.000	1.170	0.846	0.330
03769 112 6215	IF AMP	IF AMP	11	0.000	0.000	0.000	0.000
03785 251 6217	Hybrid		25	0.050	1.260	0.551	0.335
03786 251 6217	Hybrid		25	0.050	1.270	0.551	0.215
03786 251 X218A	Hybrid	Hybrid	25	0.000	1.270	0.551	0.325
03787 361 6217	Hybrid		36	0.039	0.874	0.492	0.256
03788 041 X215	Hybrid		4	0.100	0.425	0.400	0.205
03789 041 X215	Hybrid		4	0.100	0.500	0.500	0.205
03801 401 6215	QFP	QFP	40	0.040	0.480	0.480	0.113
03850 281 6215	CLCC	CLCC	28	0.050	0.720	0.400	0.090
04113 281 6217	QFP	QFP	28	0.030	0.360	0.390	0.063
04125 241 6217	HSOP	HSOP	24	0.039	0.626	0.433	0.132
07121 SKT ASSY			0	0.000	0.000	0.000	0.000
07124 SKT ASSY			3	0.000	0.000	0.000	0.000
07127 SKT ASSY			3	0.000	0.000	0.000	0.000
07233 SKT ASSY			9	0.000	3.210	1.850	0.395
07238 SKT ASSY			16	0.000	1.875	1.600	0.137
07463 SKT ASSY			21	0.080	4.900	1.200	0.205
07520 SKT ASSY			12	0.000	4.160	0.930	0.175
07521 SKT ASSY			18	0.000	3.850	0.135	0.170
07522 SKT ASSY			7	0.000	2.430	0.803	0.175
07523 SKT ASSY			5	0.000	3.100	0.930	0.185
07524 SKT ASSY			11	0.000	4.160	0.930	0.185
07525 SKT ASSY			5	0.000	2.719	1.254	0.185
07526 SKT ASSY			7	0.000	3.730	1.945	0.185
07550 SKT ASSY			28	0.000	3.700	2.020	0.310
07579 SKT ASSY			47	0.000	2.700	1.756	0.160
