PLCC SMT Emulator Bases

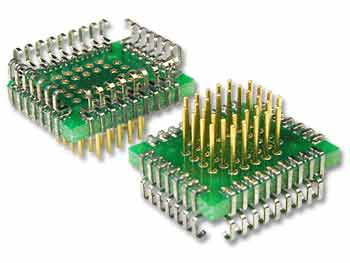

Our PLCC surface mount feet utilize J-leads to attach to the target system’s SMT lands. They present an array of gold plated, 0.05″ pitch MGA “mini-grid” pins for top side connection. There are various part profiles and pin length configurations available
| PART NUMBER |
RoHS | Bottom Package Code |
Top Pitch (mm) |
Bottom Pitch (mm) |
Top Pin Count |
Bottom Pin Count |
| SF-PLCC44-J-S-01 | Call* | PLCC44 | N/A | 1.27 | 44 | |
| SF-PLCC20-J-01 | Call* | PLCC20 | 1.27 | 1.27 | 20 | 20 |
| SF-PLCC20-J-05 | Call* | PLCC20 | 1.27 | 1.27 | 20 | 20 |
| SF-PLCC28-J-01 | Call* | PLCC28 | 1.27 | 1.27 | 28 | 28 |
| SF-PLCC28-J-02 | Call* | PLCC28 | 1.27 | 1.27 | 28 | 28 |
| SF-PLCC28-J-05 | Call* | PLCC28 | 1.27 | 1.27 | 28 | 28 |
| SF-PLCC32-J-01 | Call* | PLCC32 | 1.27 | 1.27 | 32 | 32 |
| SF-PLCC32-J-05 | Call* | PLCC32 | 1.27 | 1.27 | 32 | 32 |
| SF-PLCC44-J-01 | Call* | PLCC44 | 1.27 | 1.27 | 44 | 44 |
| SF-PLCC44-J-05 | Call* | PLCC44 | 1.27 | 1.27 | 44 | 44 |
| SF-PLCC52-J-01 | Call* | PLCC52 | 1.27 | 1.27 | 52 | 52 |
| SF-PLCC52-J-02 | Call* | PLCC52 | 1.27 | 1.27 | 52 | 52 |
| SF-PLCC52-J-05 | Call* | PLCC52 | 1.27 | 1.27 | 52 | 52 |
| SF-PLCC68-J-01 | Call* | PLCC68 | 1.27 | 1.27 | 68 | 68 |
| SF-PLCC68-J-03 | Call* | PLCC68 | 1.27 | 1.27 | 68 | 68 |
| SF-PLCC68-J-05 | Call* | PLCC68 | 1.27 | 1.27 | 68 | 68 |
| SF-PLCC68-J-06 | Call* | PLCC68 | 1.27 | 1.27 | 68 | 68 |
| SF-PLCC84-J-01 | Call* | PLCC84 | 1.27 | 1.27 | 84 | 84 |
| SF-PLCC84-J-02 | Call* | PLCC84 | 1.27 | 1.27 | 84 | 84 |
| SF-PLCC84-J-05 | Call* | PLCC84 | 1.27 | 1.27 | 84 | 84 |
| SF-PLCC84-J-S-01 | yes | PLCC84 | N/A | 1.27 | 84 | 84 |
| SF-PLCC68-J-S-01 | Call* | PLCC68 | N/A | 1.27 | N/A | 68 |
| Top Interface |
Bottom Interface |
Compatible Part 1 |
Part Description |
| SMT J-Leads | N/A | PLCC SMT Foot | |
| MGA Male Pins | SMT J-Leads | SK-MGA5/20A-01 | PLCC SMT Foot |
| MGA Male Pins | SMT J-Leads | SK-MGA5/20A-01 | PLCC SMT Foot |
| MGA Male Pins | SMT J-Leads | SK-MGA6/28A-01 | PLCC SMT Foot |
| MGA Male Pins | SMT J-Leads | SK-MGA6/28B-01 | PLCC SMT Foot |
| MGA Male Pins | SMT J-Leads | SK-MGA6/28A-01 | PLCC SMT Foot |
| MGA Male Pins | SMT J-Leads | SK-MGA7/32A-01 | PLCC SMT Foot |
| MGA Male Pins | SMT J-Leads | SK-MGA7/32A-01 | PLCC SMT Foot |
| MGA Male Pins | SMT J-Leads | SK-MGA8/44A-01 | PLCC SMT Foot |
| MGA Male Pins | SMT J-Leads | SK-MGA8/44A-01 | PLCC SMT Foot |
| MGA Male Pins | SMT J-Leads | SK-MGA9/52A-01 | PLCC SMT Foot |
| MGA Male Pins | SMT J-Leads | SK-MGA9/52A-02 | PLCC SMT Foot |
| MGA Male Pins | SMT J-Leads | SK-MGA9/52A-01 | PLCC SMT Foot |
| MGA Male Pins | SMT J-Leads | SK-MGA11/68B-01 | PLCC SMT Foot |
| MGA Male Pins | SMT J-Leads | SK-MGA11/68B-01 | PLCC SMT Foot |
| MGA Male Pins | SMT J-Leads | SK-MGA11/68B-01 | PLCC SMT Foot |
| MGA Male Pins | SMT J-Leads | SK-MGA11/68B-01 | PLCC SMT Foot |
| MGA Male Pins | SMT J-Leads | SK-MGA13/84A-01 | PLCC SMT Foot |
| MGA Male Pins | SMT J-Leads | SK-MGA13/84A-01 | PLCC SMT Foot |
| MGA Male Pins | SMT J-Leads | SK-MGA13/84A-01 | PLCC SMT Foot |
| None | SMT J-Leads | N/A | PLCC SMT Foot |
| None | SMT J-Leads | N/A | PLCC SMT Foot |
