PLCC To PGA Socket Plugs Adapters

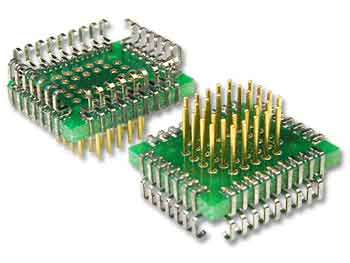

Our PLCC to PGA socket probing adapters plug into PLCC sockets and provide access to all signals at gold plated, 0.025″ square test points. A pluggable PGA pattern on the adapter accepts a PGA device being tested.
| PART NUMBER |
RoHS | Top Pitch (mm) |
Bottom Pitch (mm) |
Adapter Size Length X Width (in.) |
Top Pin Count |
Bottom Pin Count |
Top Array Size |
| SP-PLCC20-PGA-01 | Call* | 1.27 | 2.54 | 0.95 x 0.95 | 20 | 20 | 5 x 5 |
| SP-PLCC28-PGA-01 | Call* | 1.27 | 2.54 | 1.35 x 1.35 | 28 | 28 | 6 x 6 |
| SP-PLCC32-PGA-01 | Call* | 1.27 | 2.54 | 1.45 x 1.45 | 32 | 32 | 6 x 7 |
| SP-PLCC44-PGA-01 | Call* | 1.27 | 2.54 | 1.55 x 1.55 | 44 | 44 | 8 x 8 |
| SP-PLCC52-PGA-01 | Call* | 1.27 | 2.54 | 1.75 x 1.75 | 52 | 52 | 9 x 9 |
| SP-PLCC68-PGA-01 | Call* | 1.27 | 2.54 | 1.75 x 1.75 | 68 | 68 | 11 x 11 |
| SP-PLCC84-PGA-01 | Call* | 1.27 | 2.54 | 1.95 x 1.95 | 84 | 84 | 13 x 13 |
| Top Interface |
Bottom Interface |
Header Spacing (mm) |
Part Description |
| 0.1 in. spaced Socket Pins | PLCC Plug | 2.54 | PLCC In-Socket Probe Adapter |
| 0.1 in. spaced Socket Pins | PLCC Plug | 2.54 | PLCC In-Socket Probe Adapter |
| 0.1 in. spaced Socket Pins | PLCC Plug | 2.54 | PLCC In-Socket Probe Adapter |
| 0.1 in. spaced Socket Pins | PLCC Plug | 2.54 | PLCC In-Socket Probe Adapter |
| 0.1 in. spaced Socket Pins | PLCC Plug | 2.54 | PLCC In-Socket Probe Adapter |
| 0.1 in. spaced Socket Pins | PLCC Plug | 2.54 | PLCC In-Socket Probe Adapter |
| 0.1 in. spaced Socket Pins | PLCC Plug | 2.54 | PLCC In-Socket Probe Adapter |
