Description

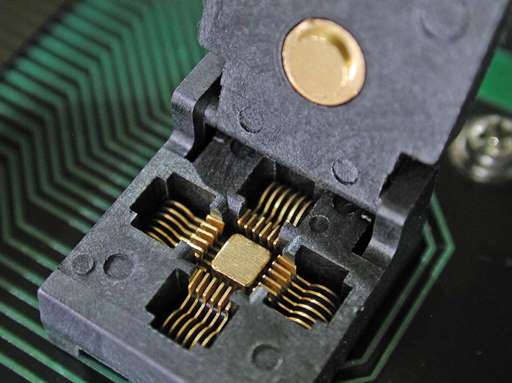

QFN (Quad Flat No-lead)
Design Features
Depth-controlled Wiping Contact, Accurate, Tightly-controlled Package Fit, Zero-insertion-force, ClamShell and Open-Top Socket Design, Optional Ground and Thermal Case
| P/N | Pkg Type |
I/O | Pitch (mm) | Pkg Body L (mm) |
Pkg Body W (mm) |
Pkg H/T (mm) |
Array | Socket Style |
| 03738 231 6217 | QFN | 17 | 0.00 | 6.00 | 5.00 | 0.90 | 6 on 2, 7 | ClamShell |
| 03741 171 6217 | QFN | 17 | 0.50 | 3.75 | 3.25 | 0.95 | 6 on 2, 4 | ClamShell |
| 03742 171 X217 | QFN | 17 | 0.50 | 3.00 | 3.00 | 0.95 | 5 on 2, 3 | ClamShell |
| 03743 171 6218B | QFN | 17 | 0.00 | 7.00 | 4.00 | 1.08 | 3 on 2, 4 | ClamShell |
| 03745 171 X217 | QFN | 17 | 1.42 | 8.00 | 8.00 | 1.30 | 4 on 4, pl | ClamShell |
| 03747 171 6218A | QFN | 17 | 1.91 | 11.64 | 9.14 | 1.50 | 5 on 2, 3 | ClamShell |
| 03945 171 6217 | QFN | 17 | 0.45 | 4.00 | 3.00 | 0.75 | 8 on 2, pl | ClamShell |
| 03946 171 6217 | QFN | 17 | 0.45 | 2.80 | 2.50 | 0.85 | 6 on 2, 3 | ClamShell |
| 040030017J6617 | QFN | 17 | 0.00 | 4.00 | 3.00 | 0.75 | 6 on 2, 2 | ClamShell |
| 04712 171 6217 | DFN | 17 | 0.45 | 4.00 | 4.00 | 0.75 | 6 on 2, pl | ClamShell |
| 04713 171 6217 | QFN | 17 | 0.50 | 3.00 | 3.00 | 0.60 | 4 on 4, pl | ClamShell |
| 04719 171 X217 | QFN | 17 | 1.00 | 8.00 | 8.00 | 0.85 | 8 on 2, pl | ClamShell |
| 060040017J6617 | QFN | 17 | 0.00 | 6.00 | 4.00 | 0.75 | 6 on 2, 2 | ClamShell |
| Q2626 017 6217 | HPH IMS | 17 | 2.54 | 26.00 | 26.00 | 2.77 | 3 on 2, 7 | OpenTop |
| 030020019J6618B | QFN | 18 | 0.40 | 3.00 | 2.00 | 0.55 | 7 on 2, 2 | ClamShell |
| 030SQ 036J6618B | QFN | 18 | 0.00 | 3.00 | 3.00 | 0.95 | 6 on 2, 3 | ClamShell |
| 03713 271 6218B | QFN | 18 | 0.80 | 7.00 | 5.00 | 2.00 | 5 on 2, 5 | ClamShell |
| 03717 181 X217 | QFN | 18 | 0.65 | 5.80 | 4.50 | 1.20 | 4 on 2, 5 | ClamShell |
| 03723 291 6218F | QFN | 18 | 0.50 | 5.00 | 4.00 | 0.90 | 8 on 2, pl | ClamShell |
| 03726 171 6217 | QFN | 18 | 0.63 | 5.00 | 5.00 | 0.90 | 8 on 2, Pl | ClamShell |
| 03733 251 6218A | QFN | 18 | 1.00 | 12.00 | 8.00 | 2.10 | 9 on 2 | ClamShell |
| 03743 181 X217 | QFN | 18 | 0.00 | 7.00 | 4.00 | 1.05 | 5 on 2, 2 | ClamShell |
| 04260 181 6217 | DFN | 18 | 1.27 | 7.00 | 7.00 | 0.85 | 4 on 4, pl | ClamShell |
| 04719 181 X217 | QFN | 18 | 1.00 | 8.00 | 9.00 | 0.85 | 8 on 2, pl | ClamShell |
| 060SQ 018J6617 | QFN | 18 | 1.00 | 6.00 | 6.00 | 0.97 | 4 on 4, pl | ClamShell |
| D0808 018M6217 | QFN | 18 | 1.70 | 8.00 | 8.00 | 1.45 | 5 on 2, 3 | ClamShell |
| D1008 020M6217 | QFN | 18 | 0.00 | 10.00 | 8.00 | 1.33 | 6 on 2, 3 | ClamShell |
| Q0605 018 6217 | QFN | 18 | 0.50 | 6.00 | 5.00 | 0.90 | 9 on 2 | OpenTop |
| 023SQ 019J6617 | QFN | 19 | 0.40 | 2.30 | 2.30 | 0.55 | 5 on 2, 4 | ClamShell |
| 023SQ 019J6618B | QFN | 19 | 0.40 | 2.30 | 2.30 | 0.75 | 5 on 2, 4 | ClamShell |
| 030020019J6617 | QFN | 19 | 0.40 | 3.00 | 2.00 | 0.55 | 6 on 2, 3 | ClamShell |
| 030020019J6618A | QFN | 19 | 0.40 | 3.00 | 2.00 | 0.75 | 7 on 2, 2 | ClamShell |
| 032025019J6617 | QFN | 19 | 0.00 | 3.20 | 2.50 | 0.90 | 6 on 2, pl | ClamShell |
| 032025019J6618B | QFN | 19 | 0.45 | 3.20 | 2.50 | 0.95 | 5 on 2, 4 | ClamShell |
| 032025019J6618C | QFN | 19 | 0.45 | 3.20 | 2.50 | 0.80 | 6 on 2, 3 | ClamShell |
| 032025023J6617 | QFN | 19 | 0.40 | 3.20 | 2.50 | 0.80 | 6 on 2, 5 | ClamShell |
| 035020019J6617 | QFN | 19 | 0.40 | 3.50 | 2.00 | 0.75 | 8 on 2, 1 | ClamShell |
| 03711 191 X217 | QFN | 19 | 0.58 | 9.86 | 8.33 | 1.47 | 3 on 2, 6 | ClamShell |
| 03713 191 6217 | QFN | 19 | 0.50 | 4.00 | 4.00 | 0.85 | 5 on 2, 4 | ClamShell |
| 03713 191 X218B | QFN | 19 | 0.50 | 3.50 | 3.50 | 0.55 | 5 on 2, 4 | ClamShell |
| 03721 191 6217 | QFN | 19 | 0.50 | 5.00 | 3.00 | 0.75 | 9 on 2, pl | ClamShell |
| 03721 191 X218B | QFN | 19 | 0.50 | 5.00 | 3.00 | 0.90 | 9 on 2 | ClamShell |
| 03731 311 X218B | QFN | 19 | 0.50 | 5.50 | 4.00 | 0.95 | 7 on 2, 5 | ClamShell |
| 03743 191 6217 | QFN | 19 | 1.00 | 6.00 | 5.00 | 1.45 | 5 on 2, 4 | ClamShell |
| 019015020J6618A | QFN | 20 | 0.40 | 1.90 | 1.50 | 0.55 | 4 on 2, 3 | ClamShell |
| 030016020J6617 | QFN | 20 | 0.40 | 3.00 | 1.60 | 0.55 | 7 on 2, 2 | ClamShell |
| 030020020J6617 | QFN | 20 | 0.40 | 3.00 | 2.00 | 0.75 | 7 on 2, 3 | ClamShell |
| 030020020J6618A | QFN | 20 | 0.40 | 3.00 | 2.00 | 0.55 | 7 on 2, 3 | ClamShell |
| 030020020J6618B | QFN | 20 | 0.40 | 3.00 | 2.00 | 0.55 | 6 on 2, 4 | ClamShell |
| 030SQ 020J6617 | QFN | 20 | 0.50 | 3.00 | 3.00 | 0.55 | 5 on 4 | ClamShell |
