Description

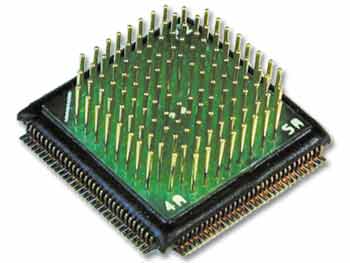

QFP Surface Mount Emulator Bases
We offer more than 150 surface mount feet for QFP interfaces. Our proprietary shaped solder technology, gull wing leads, or leadless systems are employed to attach the part to the SMT lands on the target board. These parts present our MGA (.05″ pitch “mini-grid”) array of gold plated pins to provide pluggable connections.
| PART NUMBER |
RoHS | Bottom Package Code |
Top Pitch (mm) |
Bottom Pitch (mm) |
Top Pin Count |
Bottom Pin Count |
| SF-QFE64SD-L-01 | Call* | QFE64SD | 1.27 | 0.5 | 64 | 64 |
| SF-QFE64SE-L-01 | Call* | QFE64SE | 1.27 | 0.8 | 64 | 64 |
| SF-QFE64SF-L-01 | Call* | QFE64SF | 1.27 | 0.8 | 64 | 64 |
| SF-QFE64SK-L-01 | Call* | QFE64SK | 1.27 | 0.8 | 64 | 64 |
| SF-QFE64SP-K-01 | Call | QFE64SP | 0.8 | 0.4 | 64 | 64 |
| SF-QFJ068SB-L-01 | Call* | QFJ068SB | 1.27 | 1.27 | 68 | 68 |
| SF-QFE74SA-L-01 | Call* | QFE74SA | 1.27 | 0.8 | 74 | 74 |
| SF-QFE80RA-L-01 | Call* | QFE80RA | 1.27 | 0.8 | 80 | 80 |
| SF-QFE80RB-L-01 | Call* | QFE80RB | 1.27 | 0.8 | 80 | 80 |
| SF-QFE80RC-L-01 | Call* | QFE80RC | 1.27 | 0.8 | 80 | 80 |
| SF-QFE80RD-L-01 | Call* | QFE80RD | 1.27 | 0.8 | 80 | 80 |
| SF-QFE80SA-L-01 | Call* | QFE80SA | 1.27 | 0.65 | 80 | 80 |
| SF-QFE80SA-L-02 | Call* | QFE80SA | 1.27 | 0.65 | 80 | 80 |
| SF-QFE80SA-L-03 | Call* | QFE80SA | 1.27 | 0.65 | 80 | 80 |
| SF-QFE80SA-L-04 | yes | QFE80SA | 1.27 | 0.65 | 80 | 80 |
| SF-QFE80SC-K-01 | Call* | QFE80SC | 1 | 0.5 | 80 | 80 |
| SF-QFE80SC-L-01 | Call* | QFE80SC | 1.27 | 0.5 | 80 | 80 |
| SF-QFE80SD-L-01 | Call* | QFE80SD | 1.27 | 0.65 | 80 | 80 |
| SF-QFJ084SA-L-01 | Call* | QFJ084SA | 1.27 | 0.635 | 84 | 84 |
| SF-QFJ084SE-L-01 | Call* | QFJ084SE | 1.27 | 0.635 | 84 | 84 |
| SF-QFJ084SF-L-01 | Call* | QFJ084SF | 1.27 | 0.635 | 84 | 84 |
| SF-QFE88SA-L-01 | Call* | QFE88SA | 1.27 | 0.65 | 88 | 88 |
| SF-QFE94SA-L-01 | Call* | QFE94SA | 1.27 | 0.8 | 94 | 94 |
| Top Interface |
Bottom Interface |
Compatible Part 1 |
IC Package Lead Tip to Tip (mm) |
Part Description |
| MGA Male Pins | Leadless Foot | SK-MGA8/64A-01 | 12 x 12 | QFE SMT Foot |
| MGA Male Pins | Leadless Foot | SK-MGA11/76A-01 | 17.6 x 17.6 | QFE SMT Foot |
| MGA Male Pins | Leadless Foot | SK-MGA9/65A-01 | 16 x 16 | QFE SMT Foot |
| MGA Male Pins | Leadless Foot | N/A | N/A | QFE SMT Foot |
| MGA Male Pins | Bottom Termination Foot | CA-QFE64SP-K-Z-T-01 | 9 x 9 | QFE SMT Foot |
| MGA Male Pins | Leadless Foot | SK-MGA11/68B-01 | 27.9 x 27.9 | QFE SMT Foot |
| MGA Male Pins | Leadless Foot | SK-MGA11/68B-01 | 23.2 x 23.2 | QFE SMT Foot |
| MGA Male Pins | Leadless Foot | SK-MGA9/80A-01 | 19.6 x 25.6 | QFE SMT Foot |
| MGA Male Pins | Leadless Foot | SK-MGA9/80A-01 | 17.2 x 23.2 | QFE SMT Foot |
| MGA Male Pins | Leadless Foot | SK-MGA9/80A-01 | 17.9 x 23.9 | QFE SMT Foot |
| MGA Male Pins | Leadless Foot | SK-MGA9/80A-01 | 19 x 25 | QFE SMT Foot |
| MGA Male Pins | Leadless Foot | SK-MGA11/84A-01 | 17.2 x 17.2 | QFE SMT Foot |
| MGA Male Pins | Leadless Foot | SK-MGA11/80A-01 | 17.2 x 17.2 | QFE SMT Foot |
| MGA Male Pins | Leadless Foot | SK-MGA11/80B-01 | 17.2 x 17.2 | QFE SMT Foot |
| MGA Female Pins | Leadless Foot | SK-MGA11/84A-01 | 17.2 x 17.2 | QFE SMT Foot |
| MGA Male Pins | Bottom Termination Foot | SK-UGA9/80A-01 | 14 x 14 | QFE SMT Foot |
| MGA Male Pins | Leadless Foot | SK-MGA9/80A-01 | 14 x 14 | QFE SMT Foot |
| MGA Male Pins | Leadless Foot | SK-MGA9/80A-01 | 16 x 16 | QFE SMT Foot |
| MGA Male Pins | Leadless Foot | SK-MGA10/84A-01 | 19.8 x 19.8 | QFE SMT Foot |
| MGA Male Pins | Leadless Foot | SK-MGA10/84A-01 | 20.6 x 20.6 | QFE SMT Foot |
| MGA Male Pins | Leadless Foot | SK-MGA10/84A-01 | 22.9 x 22.9 | QFE SMT Foot |
| MGA Male Pins | Leadless Foot | SK-MGA11/88A-01 | 19.2 x 19.2 | QFE SMT Foot |
| MGA Male Pins | Leadless Foot | SK-MGA11/84A-01 | 23.2 x 23.2 | QFE SMT Foot |
