SA Series IP67 Push-pull coupling Connectors

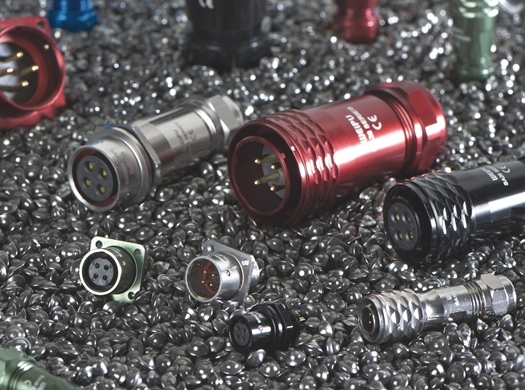

The SA6, SA8, SA10, SA12, SA16, SA20 and SA28 series are IP67 waterproof connectors, made of anodized aluminum, especially designed for the high-end market. With push and pull coupling they are the most waterproof connectors. The series are available for cable to cable (in-line) and cable to panel-mount connections. Each side can be made male or female contact.

Applications: these IP67 waterproof connectors are designed for high-end products. The stunning aluminum made shell made is widely used in many high-end areas, such as medical devices, high-end equipments, testing or measuring equipments, communications field, marine equipments, industrial, etc.. They can be used for both power and signal and in any outdoor environment applications.

Features:

  • IP rating: IP67
  • CE, RoHS approval
  • Shell material: anodized aluminum
  • Coupling: Push-pull
  • of contacts: SA6: 3-5 / SA8: 2-8 / SA10: 2-5 / SA12: 2-9 / SA16: 2-10 / SA20: 2-12 / SA28: 2-12 gold-plated contacts
  • Termination: Solder for SA6, SA8, SA10, SA12, SA16, SA20, SA28
  •                     Crimp for SA16, SA20, SA28
  •                     Screw for SA20, SA28
  • Rated Current (A) and V: 3 – 50 Amps / 30 – 500 (AC,V)
  • Mating cycle: > 500
  • Temperature range: -40°C / +85°C
  • Can be cable-to-panel and cable-to-cable

Part Nr.s (and description):

SA6 series => Colour: Black, Silver, Blue (special order), Green (special order) Red (special order):

SA610/P_ _ (2, 3, 4, 5 pin male Cable connector Mate with SA611 and SA612, Cable outer diameter options: I 3.5-4mm); SA610/S_ _  (2, 3, 4, 5 pin female Cable connector Mate with SA611 and SA612, Cable outer diameter options: I 3.5-4mm); SA611/P_ _ (2, 3, 4, 5 pin in-line male Cable connector Mate with SA610, Cable outer diameter options: I 3.5-4mm); SA611/S_ _ (2, 3, 4, 5 pin in-line female Cable connector Mate with SA610, Cable outer diameter options: I 3.5-4mm); SA612/P_ _ (2, 3, 4, 5 pin male Front mount socket connector Mate with SA610; SA612/S_ _ (2, 3, 4, 5 pin female Front mount socket connector Mate with SA610.

SA8 series => Colour: Black, Silver, Blue (special order), Green (special order) Red (special order):

SA810/P_ _ (2, 3, 4, 6, 8 pin male Cable connector Mate with SA811 and SA812, Cable outer diameter options: I 4-5mm); SA810/S_ _  (2, 3, 4, 6, 8 pin female Cable connector Mate with SA811 and SA812, Cable outer diameter options: I 4-5mm); SA811/P_ _ (2, 3, 4, 5, 6, 8 pin in-line male Cable connector Mate with SA810, Cable outer diameter options: I 4-5mm); SA811/S_ _ (2, 3, 4, 5, 6, 8 pin in-line female Cable connector Mate with SA810, Cable outer diameter options: I 4-5mm); SA812/P_ _ (2, 3, 4, 5, 6, 8 pin male Front mount socket connector Mate with SA810; SA812/S_ _ (2, 3, 4, 5, 6, 8 pin female Front mount socket connector Mate with SA810.

SA10 series => Colour: Black, Silver, Blue (special order), Green (special order) Red (special order):

SA1010/P_ _ (2, 3, 4, 5 pin male Cable connector Mate with SA1010, SA1011 and SF1012, Cable outer diameter options: I 4-6.5mm); SA1010/S_ _  (2, 3, 4, 5 pin female Cable connector Mate with SA1010, SA1011 and SF1012, Cable outer diameter options: I 4-6.5mm); SA1011/P_ _ (2, 3, 4, 5 pin in-line male Cable connector Mate with SA1010, Cable outer diameter options: I 4-6.5mm); SA1011/S_ _ (2, 3, 4, 5 pin in-line female Cable connector Mate with SA1010, Cable outer diameter options: I 4-6.5mm); SA1012/P_ _ (2, 3, 4, 5 pin male Front mount socket connector Mate with SA1010; SA1012/S_ _ (2, 3, 4, 5 pin female Front mount socket connector Mate with SA1010.

SA12 series => Colour: Black, Silver, Blue (special order), Green (special order) Red (special order):

SA1210/P_ _ (2, 3, 4, 5, 6, 7, 9 pin male Cable connector Mate with SA1211, SA1212 and SA1213, Cable outer diameter options: I 4-6.5mm; II 5-8mm); SA1210/S_ _  (2, 3, 4, 5, 6, 7, 9 pin female Cable connector Mate with SA1211, SA1212 and SA1213, Cable outer diameter options: I 4-6.5mm; II 5-8mm); SA1211/P_ _ (2, 3, 4, 5, 6, 7, 9 pin in-line male Cable connector Mate with SA1210, Cable outer diameter options: I 4-6.5mm; II 5-8mm); SA1211/S_ _ (2, 3, 4, 5, 6, 7, 9 pin in-line female Cable connector Mate with SA1210, Cable outer diameter options: I 4-6.5mm; II 5-8mm); SA1212/P_ _  (2, 3, 4, 5, 6, 7, 9 pin male Front mount socket connector Mate with SA1210; SA1212/S_ _ (2, 3, 4, 5, 6, 7, 9 pin female Front mount socket connector Mate with SA1210; SA1213/P_ _  (2, 3, 4, 5, 6, 7, 9 pin male Square flange socket connector Mate with SF1210; SA1213/S_ _ (2, 3, 4, 5, 6, 7, 9 pin female Square flange socket connector Mate with SA1210

SA16 series => Colour: Black, Silver, Blue (special order), Green (special order) Red (special order):

SA1610/P_ _ (2, 3, 4, 5, 7, 9, 10 pin male Cable connector Mate with SA1611, SA1612 and SA1613, Cable outer diameter options: I 5-8mm, II 5-12mm – Option conn.: 1 solder, 2 crimp); SA1610/S_ _  (2, 3, 4, 5, 7, 9, 10 pin male Cable connector Mate with SA1611, SA1612 and SA1613, Cable outer diameter options: I 5-8mm, II 5-12mm – Option conn.: 1 solder, 2 crimp); SA1611/P_ _ (2, 3, 4, 5, 7, 9, 10 pin in-line male Cable connector Mate with SA1610, Cable outer diameter options: I 5-8mm, II 5-12mm – Option conn.: 1 solder, 2 crimp); SA1611/S_ _ (2, 3, 4, 5, 7, 9, 10 pin in-line female Cable connector Mate with SA1610, Cable outer diameter options: I 5-8mm, II 5-12mm – Option conn.: 1 solder, 2 crimp); SA1612/P_ _ (2, 3, 4, 5, 7, 9, 10 pin male Front mount socket connector Mate with SA1610 – Option conn.: 1 solder, 2 crimp; SA1612/S_ _ (2, 3, 4, 5, 7, 9, 10 pin female Front mount socket connector Mate with SA1610 – Option conn.: 1 solder, 2 crimp; SA1613/P_ _  (2, 3, 4, 5, 7, 9, 10 pin male Square flange socket connector Mate with SA1610; SA1613/S_ _ (2, 3, 4, 5, 7, 9, 10 pin female Square flange socket connector Mate with SA1610.

SA20 series => Colour: Black, Silver, Blue (special order), Green (special order) Red (special order):

SA2010/P_ _ (2, 3, 4, 5, 7, 9, 12 pin male Cable connector Mate with SA2011, SA2012 and SA2013, Cable outer diameter options: I 8-12mm – Option conn.: 1 solder, 2 screw, 3 crimp); SF2010/S_ _  (2, 3, 4, 5, 7, 9, 12 pin male Cable connector Mate with SA2011, SA2012 and SA2013, Cable outer diameter options: I 8-12mm – Option conn.: 1 solder, 2 screw, 3 crimp); SA2011/P_ _ (2, 3, 4, 5, 7, 9, 12 pin in-line male Cable connector Mate with SA2010, Cable outer diameter options: I 8-12mm); SA2011/S_ _ (2, 3, 4, 5, 7, 9, 12 pin in-line female Cable connector Mate with SA2010, Cable outer diameter options: I 8-12mm); SA2012/P_ _  (2, 3, 4, 5, 7, 9, 12 pin male Front mount socket connector Mate with SA2010 – Option conn.: 1 solder, 2 screw, 3 crimp; SA2012/S_ _ (2, 3, 4, 5, 7, 9, 12 pin female Front mount socket connector Mate with SA2010 – Option conn.: 1 solder, 2 screw, 3 crimp ; SA2013/P_ _  (2, 3, 4, 5, 7, 9, 12 pin male Square flange socket connector Mate with SA2010; SA2013/S_ _ (2, 3, 4, 5, 7, 9, 12 pin female Square flange socket connector Mate with SA2010.

SA28 series => Colour: Black, Silver, Blue (special order), Green (special order) Red (special order):

SA2810/P_ _ (2, 3, 4, 7, 8, 9, 10, 10B, 12, 16, 17, 20, 24, 26 pin male Cable connector Mate with SA2811, SA2812 and SA2813, Cable outer diameter options: I 13-16mm – Option conn.: 1 solder, 2 screw, 3 crimp); SF2810/S_ _  (2, 3, 4, 7, 8, 9, 10, 10B, 12, 16, 17, 20, 24, 26 pin male Cable connector Mate with SA2811, SA2812 and SA2813, Cable outer diameter options: I 13-16mm – Option conn.: 1 solder, 2 screw, 3 crimp); SA2811/P_ _ (2, 3, 4, 7, 8, 9, 10, 10B, 12, 16, 17, 20, 24, 26 pin in-line male Cable connector Mate with SA2810, Cable outer diameter options: I 13-16mm); SA2811/S_ _ (2, 3, 4, 7, 8, 9, 10, 10B, 12, 16, 17, 20, 24, 26 pin in-line female Cable connector Mate with SA2810, Cable outer diameter options: I 13-16mm); SA2812/P_ _  (2, 3, 4, 7, 8, 9, 10, 10B, 12, 16, 17, 20, 24, 26 pin male Front mount socket connector Mate with SA2810 – Option conn.: 1 solder, 2 screw, 3 crimp; SA2812/S_ _ (2, 3, 4, 7, 8, 9, 10, 10B, 12, 16, 17, 20, 24, 26 pin female Front mount socket connector Mate with SA2810 – Option conn.: 1 solder, 2 screw, 3 crimp ; SA2813/P_ _  (2, 3, 4, 7, 8, 9, 10, 10B, 12, 16, 17, 20, 24, 26 pin male Square flange socket connector Mate with SA2810; SA2813/S_ _ (2, 3, 4, 7, 8, 9, 10, 10B, 12, 16, 17, 20, 24, 26 pin female Square flange socket connector Mate with SA2810.
