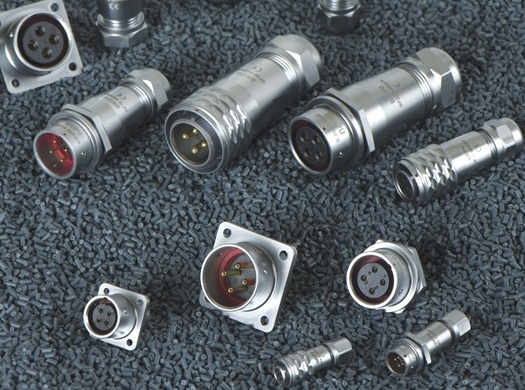

SF Series IP44 and IP67 Push-pull coupling Connectors

The SF6, SF6B, SF8, SF8B, SF10, SF12, SF16 and SF20 series are IP44 and IP67 waterproof connectors, made of brass with chrome plating, especially designed for the high-end market. With push and pull coupling they are the most waterproof connectors. The series are available for cable to cable (in-line) and cable to panel-mount connections. Each side can be made male or female contact.

Applications: these IP67 waterproof connectors are designed for high-end products. The stunning brass made shell made is widely used in many high-end areas, such as medical devices, high-end equipments, testing or measuring equipments, communications field, marine equipments, industrial, etc.. They can be used for both power and signal and in any outdoor environment applications.

Features:

• IP rating: IP44 and IP67
• CE, RoHS approval
• Shell material: Brass with chrome plating
• Coupling: Push-pull
• No. of contacts: SF6: 2-5 / SF6B: 2-5 / SF8: 2-8 / SF8B: 2-8 / SF10: 2-5 / SF12: 2-9 / SF16: 2-10 / SF20: 2-12 gold-plated contacts
• Termination: Solder for SF6, SF6B, SF8, SF8B, SF10, SF12, SF16, SF20
•                     Crimp for SF16, SF20 / Screw for SF20
• Rated Current (A) and V: 3 – 25 Amps / 30 – 500 (AC,V)
• Mating cycle: 500
• Temperature range: -40°C / +85°C
• Can be cable-to-panel and cable-to-cable

Part Nr.s (and description):

SF6 & SF6B series:

SF610/P_ _ (2, 3, 4, 5 pin male Cable connector Mate with SF611 and SF612, Cable outer diameter options: I 3-4mm); SF610/S_ _  (2, 3, 4, 5 pin female Cable connector Mate with SF611 and SF612, Cable outer diameter options: I 3-4mm); SF611/P_ _ (2, 3, 4, 5 pin in-line male Cable connector Mate with SF610, Cable outer diameter options: I 3-4mm); SF611/S_ _ (2, 3, 4, 5 pin in-line female Cable connector Mate with SF610, Cable outer diameter options: I 3-4mm); SF612/P_ _  (2, 3, 4, 5 pin male Front mount socket connector Mate with SF610; SF612/S_ _ (2, 3, 4, 5 pin female Front mount socket connector Mate with SF610.

SF610B/P_ _ (2, 3, 4, 5 pin male Cable connector Mate with SF611B and SF612B, Cable outer diameter options: I 3-4mm); SF610B/S_ _  (2, 3, 4, 5 pin female Cable connector Mate with SF611B and SF612B, Cable outer diameter options: I 3-4mm); SF611B/P_ _ (2, 3, 4, 5 pin in-line male Cable connector Mate with SF610B, Cable outer diameter options: I 3-4mm); SF611B/S_ _ (2, 3, 4, 5 pin in-line female Cable connector Mate with SF610B, Cable outer diameter options: I 3-4mm); SF612B/P_ _  (2, 3, 4, 5 pin male Front mount socket connector Mate with SF610; SF612B/S_ _ (2, 3, 4, 5 pin female Front mount socket connector Mate with SF610B.

SF8 & SF8B series:

SF810/P_ _ (2, 3, 4, 6, 8 pin male Cable connector Mate with SF811 and SF812, Cable outer diameter options: I 4-5mm); SF810/S_ _  (2, 3, 4, 6, 8 pin female Cable connector Mate with SF811 and SF812, Cable outer diameter options: I 4-5mm); SF811/P_ _ (2, 3, 4, 5, 6, 8 pin in-line male Cable connector Mate with SF810, Cable outer diameter options: I 4-5mm); SF811/S_ _ (2, 3, 4, 5, 6, 8 pin in-line female Cable connector Mate with SF810, Cable outer diameter options: I 4-5mm); SF812/P_ _  (2, 3, 4, 5, 6, 8 pin male Front mount socket connector Mate with SF810; SF812/S_ _ (2, 3, 4, 5, 6, 8 pin female Front mount socket connector Mate with SF810.

SF810B/P_ _ (2, 3, 4, 6, 8 pin male Cable connector Mate with SF811B and SF812B, Cable outer diameter options: I 4-5mm); SF810B/S_ _  (2, 3, 4, 6, 8 pin female Cable connector Mate with SF81B1 and SF812B, Cable outer diameter options: I 4-5mm); SF811B/P_ _ (2, 3, 4, 5, 6, 8 pin in-line male Cable connector Mate with SF810B, Cable outer diameter options: I 4-5mm); SF811B/S_ _ (2, 3, 4, 5, 6, 8 pin in-line female Cable connector Mate with SF810B, Cable outer diameter options: I 4-5mm); SF812B/P_ _  (2, 3, 4, 5, 6, 8 pin male Front mount socket connector Mate with SF810B; SF812B/S_ _ (2, 3, 4, 5, 6, 8 pin female Front mount socket connector Mate with SF810B.

SF10 series:

SF1010/P_ _ (2, 3, 4, 5 pin male Cable connector Mate with SF1011 and SF1012, Cable outer diameter options: I 4-6mm); SF1010/S_ _  (2, 3, 4, 5 pin female Cable connector Mate with SF1011 and SF1012, Cable outer diameter options: I 4-6mm); SF1011/P_ _ (2, 3, 4, 5 pin in-line male Cable connector Mate with SF1010, Cable outer diameter options: I 4-6mm); SF1011/S_ _ (2, 3, 4, 5 pin in-line female Cable connector Mate with SF1010, Cable outer diameter options: I 4-6mm); SF1012/P_ _  (2, 3, 4, 5 pin male Front mount socket connector Mate with SF1010; SF1012/S_ _ (2, 3, 4, 5 pin female Front mount socket connector Mate with SF1010.

SF12 series:

SF1210/P_ _ (2, 3, 4, 5, 6, 7, 9 pin male Cable connector Mate with SF1211, SF1212 and SF1213, Cable outer diameter options: I 4-6mm; II 5-8mm); SF1210/S_ _  (2, 3, 4, 5, 6, 7, 9 pin female Cable connector Mate with SF1211, SF1212 and SF1213, Cable outer diameter options: I 4-6mm; II 5-8mm); SF1211/P_ _ (2, 3, 4, 5, 6, 7, 9 pin in-line male Cable connector Mate with SF1210, Cable outer diameter options: I 4-6mm; II 5-8mm); SF1211/S_ _ (2, 3, 4, 5, 6, 7, 9 pin in-line female Cable connector Mate with SF1210, Cable outer diameter options: I 4-6mm; II 5-8mm); SF1212/P_ _  (2, 3, 4, 5, 6, 7, 9 pin male Front mount socket connector Mate with SF1210; SF1212/S_ _ (2, 3, 4, 5, 6, 7, 9 pin female Front mount socket connector Mate with SF1210; SF1213/P_ _  (2, 3, 4, 5, 6, 7, 9 pin male Square flange socket connector Mate with SF1210; SF1213/S_ _ (2, 3, 4, 5, 6, 7, 9 pin female Square flange socket connector Mate with SF1210; SF1214/P_ _ (2, 3, 4, 5, 6, 7, 9 pin male Angled cable connector Mate with SF1211, SF1212 and SF1213, Cable outer diameter options: I 4-6mm; II 5-8mm); SF1214/S_ _  (2, 3, 4, 5, 6, 7, 9 pin female Angled cable connector Mate with SF1211, SF1212 and SF1213, Cable outer diameter options: I 4-6mm; II 5-8mm).

SF16 series:

SF1610/P_ _ (2, 3, 4, 5, 7, 9, 10 pin male Cable connector Mate with SF1611, SF1612 and SF1613, Cable outer diameter options: I 5-8mm); SF1610/S_ _  (2, 3, 4, 5, 7, 9, 10 pin male Cable connector Mate with SF1611, SF1612 and SF1613, Cable outer diameter options: I 5-8mm); SF1611/P_ _ (2, 3, 4, 5, 7, 9, 10 pin in-line male Cable connector Mate with SF1610, Cable outer diameter options: I 5-8mm); SF1611/S_ _ (2, 3, 4, 5, 7, 9, 10 pin in-line female Cable connector Mate with SF1610, Cable outer diameter options: I 5-8mm); SF1612/P_ _  (2, 3, 4, 5, 7, 9, 10 pin male Front mount socket connector Mate with SF1610; SF1612/S_ _ (2, 3, 4, 5, 7, 9, 10 pin female Front mount socket connector Mate with SF1610.

SF20 series:

SF2010/P_ _ (2, 3, 4, 5, 7, 9, 12 pin male Cable connector Mate with SF2011, SF2012 and SF2013, Cable outer diameter options: I 4-6mm, II 5-8mm – Option conn.: 1 solder, 2 screw, 3 crimp); SF2010/S_ _  (2, 3, 4, 5, 7, 9, 12 pin male Cable connector Mate with SF2011, SF2012 and SF2013, Cable outer diameter options: I 4-6mm, II 5-8mm – Option conn.: 1 solder, 2 screw, 3 crimp); SF2011/P_ _ (2, 3, 4, 5, 7, 9, 12 pin in-line male Cable connector Mate with SF2010, Cable outer diameter options: I 4-6mm, II 5-8mm); SF2011/S_ _ (2, 3, 4, 5, 7, 9, 12 pin in-line female Cable connector Mate with SF2010, Cable outer diameter options: I 4-6mm, II 5-8mm); SF2012/P_ _  (2, 3, 4, 5, 7, 9, 12 pin male Front mount socket connector Mate with SF2010; SF2012/S_ _ (2, 3, 4, 5, 7, 9, 12 pin female Front mount socket connector Mate with SF2010; SF2013/P_ _  (2, 3, 4, 5, 7, 9, 12 pin male Square flange socket connector Mate with SF2010; SF2013/S_ _ (2, 3, 4, 5, 7, 9, 12 pin female Square flange socket connector Mate with SF2010.
