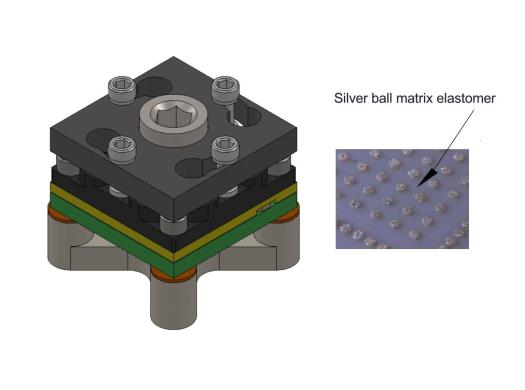

SM QFN SOCKET DIRECT MOUNT, SOLDERLESS SOCKET FOR BURN-IN AND TEST APPLICATIONS

Description: SM-QFN Socket for 8x8mm 0.5mm pitch QFN56

Features:

• Directly mounts to target PCB (needs tooling holes) with hardware.
• Wide temperature range (-55°C to +150°C).
• Current capability is 4A per pin at 14°C temperature rise.
• Over 40GHz bandwidth @-1dB for edge pins
• Low and stable contact resistance for reliable production yield.
• Self inductance under 0.21nH.
• Easily removable swivel socket lid

SM-QFN-9017
