Description
Socket Accessories (SMT Options)

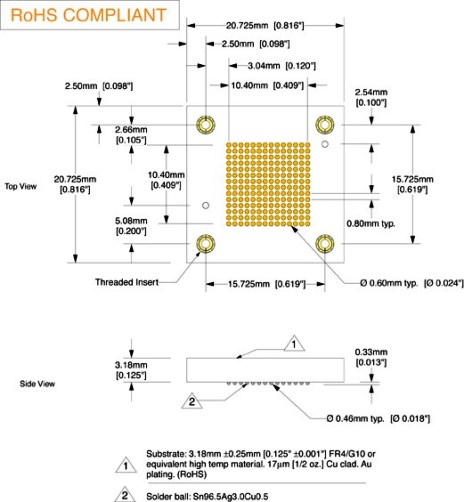

The SMT adapter consists of standard high temperature FR4 with plugged via technology, eutectic SN63PB37 solder balls or SAC lead free solder balls and threaded inserts for mounting the socket. The top side of adapter has SMT pads to receive socket interconnect and the bottom side has appropriate solder balls for corresponding pitch. This FR4 adapter with balls can be soldered to the SMT pads in the target board. Then socket can be mounted to the threaded insert on the FR4 adapter.
These SMT adapters require more board space around the device pattern. If the space is limited to chip size, then chip size Giga-snaP female adapter can be solder to the target board. GHz socket mounted on to a male pin adapter can be plugged into the female Giga-snap adapter to complete the connection.
| PART NUMBER |
RoHS | Top Pin Count |
Top Pitch mm |
IC Array X |
IC Array Y |
Compatible Part 1 |
| SF-BGA100C-B-05 | no | 100 | 0.8 | 10 | 10 | SG-BGA-6026 |
| SF-BGA100C-B-05F | yes | 100 | 0.8 | 10 | 10 | SG-BGA-6026 |
| SF-BGA1031A-B-05F | yes | 1031 | 0.8 | 35 | 35 | SG-BGA-6466 |
| SF-BGA1156A-B-05 | yes | 1156 | 1 | 34 | 34 | SG-BGA-6020 |
| SF-BGA121A-B-05 | no | 121 | 1.27 | 11 | 11 | SG-BGA-6050 |
| SF-BGA121A-B-05F | yes | 121 | 1.27 | 11 | 11 | SG-BGA-6050 |
| SF-BGA121D-B-05 | no | 121 | 0.8 | 11 | 11 | SG-BGA-6021 |
| SF-BGA121D-B-05F | yes | 121 | 0.8 | 11 | 11 | SG-BGA-6021 |
| SF-BGA128G-B-05F | yes | 128 | 1 | 13 | 11 | SBT-BGA-6026 |
| SF-BGA144K-B-05 | no | 144 | 0.8 | 12 | 12 | SG-BGA-6019 |
| SF-BGA144K-B-05F | yes | 144 | 0.8 | 12 | 12 | SG-BGA-6019 |
| SF-BGA1440A-B-05 | no | 1440 | 1 | 38 | 38 | none |
| SF-BGA1440A-B-05F | yes | 1440 | 1 | 38 | 38 | none |
| SF-BGA169F-B-05 | no | 169 | 0.8 | 13 | 13 | SG-BGA-6000 |
| SF-BGA169F-B-05F | yes | 169 | 0.8 | 13 | 13 | SG-BGA-6000 |
| SF-BGA169H-B-05 | no | 169 | 0.5 | 14 | 28 | SG-BGA-7160 |
| SF-BGA169H-B-05F | yes | 169 | 0.5 | 14 | 28 | SG-BGA-7160 |
| SF-BGA194A-B-05F | yes | 194 | 0.8 | 15 | 15 | SG-BGA-6002 |
| SF-BGA196C-B-05 | no | 196 | 1 | 14 | 14 | SG-BGA-6048 |
| SF-BGA196C-B-05F | yes | 196 | 1 | 14 | 14 | SG-BGA-6048 |
| Compatible Part 2 |
Compatible Part 3 |
Compatible Part 4 |
Part Description |
| N/A | N/A | N/A | GHz Socket SMT Adapter |
| N/A | N/A | N/A | GHz Socket SMT Adapter |
| none | none | none | GHz Socket SMT Adapter |
| SG-BGA-6046 | SG-BGA-6062 | SG-BGA-6127 | GHz Socket SMT Adapter |
| N/A | N/A | N/A | GHz Socket SMT Adapter |
| N/A | N/A | N/A | GHz Socket SMT Adapter |
| SG-BGA-6059 | N/A | N/A | GHz Socket SMT Adapter |
| SG-BGA-6059 | N/A | N/A | GHz Socket SMT Adapter |
| none | none | none | GHz Socket SMT Adapter |
| N/A | N/A | N/A | GHz Socket SMT Adapter |
| N/A | N/A | N/A | GHz Socket SMT Adapter |
| none | none | none | GHz Socket SMT Adapter |
| none | none | none | GHz Socket SMT Adapter |
| SG-BGA-6027 | N/A | N/A | GHz Socket SMT Adapter |
| SG-BGA-6027 | N/A | N/A | GHz Socket SMT Adapter |
| N/A | N/A | N/A | GHz Socket SMT Adapter |
| N/A | N/A | N/A | GHz Socket SMT Adapter |
| none | none | none | GHz Socket SMT Adapter |
| N/A | N/A | N/A | GHz Socket SMT Adapter |
| N/A | N/A | N/A | GHz Socket SMT Adapter |
