Description

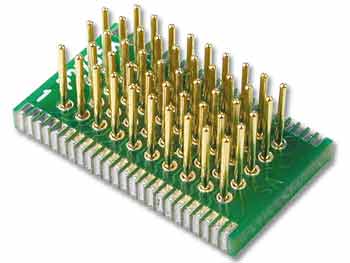

SOIC Surface Mount Emulator Bases
Our SOIC surface mount feet are offered in leadless (-L), J-leaded (-J), or bottom termination (-K) variations. When soldered to the target SMT lands, they create a pluggable connection by presenting an array of gold plated pins. Some of these parts utilize our smallest 0.8mm pitch “micro-grid array” technology.
| PART NUMBER |
RoHS | Bottom Package Code |
Top Pitch (mm) |
Bottom Pitch (mm) |
Top Pin Count |
Bottom Pin Count |
| SF-SO20A-J-03F | yes | SO20A | 1.27 | 1.27 | 20 | 20 |
| SF-SO20C-J-01 | Call* | SO20C | 1.27 | 1.27 | 20 | 20 |
| SF-SO20C-J-01F | yes | SO20C | 1.27 | 1.27 | 20 | 20 |
| SF-SO20D-J-01 | Call* | SO20D | 1.27 | 1.27 | 20 | 20 |
| SF-SO20E-L-01 | Call* | SO20E | 1.27 | 0.65 | 20 | 20 |
| SF-SO20E-L-02 | Call* | SO20E | 1.27 | 0.65 | 20 | 20 |
| SF-SO20E-L-02F | yes | SO20E | 1.27 | 0.65 | 20 | 20 |
| SF-SO20E-L-41 | yes | SO20E | 1.27 | 0.65 | 20 | 20 |
| SF-SO20E-L-42 | yes | SO20E | 1.27 | 0.65 | 20 | 20 |
| SF-SO20F-L-01 | Call* | SO20F | 1.27 | 0.65 | 20 | 20 |
| SF-SO20F-L-01F | yes | SO20F | 1 | 0.65 | 20 | 20 |
| SF-SOJ20A-J-01 | Call* | SOJ20A | 1.27 | 1.27 | 20 | 20 |
| SF-SOJ20A-J-02 | Call* | SOJ20A | 1.27 | 1.27 | 20 | 20 |
| SF-SOJ20B-J-01 | Call* | SOJ20B | 1.27 | 1.27 | 20 | 20 |
| SF-SO24A-J-01 | Call* | SO24A | 1.27 | 1.27 | 24 | 24 |
| SF-SO24A-J-02 | Call* | SO24A | 1.27 | 1.27 | 24 | 24 |
| SF-SO24F-J-01 | Call* | SO24F | 1.27 | 1.27 | 24 | 24 |
| SF-SO24F-J-02 | Call* | SO24F | 1.27 | 1.27 | 24 | 24 |
| SF-SO24F-J-03 | Call* | SO24F | 1.27 | 1.27 | 24 | 24 |
| SF-SO24F-J-04 | Call* | SO24F | 1.27 | 1.27 | 24 | 24 |
| Top Interface |
Bottom Interface |
IC Package Lead Tip to Tip (mm) |
Compatible Part 1 |
SOIC Body Width (mm) |
SOIC Body Length (mm) |
Part Description |
| MGA Male pins | J-leaded | 10.4 | SK-MGA10/20B-01 | 7.49 | 7.49 | SOIC SMT Foot |
| MGA Male pins | J-leaded | 5.9 | SK-MGA10/20A-01 | 3.81 | 3.81 | SOIC SMT Foot |
| MGA Male pins | J-leaded | 5.9 | SK-MGA10/20A-01 | 3.81 | 3.81 | SOIC SMT Foot |
| MGA Male pins | J-leaded | 9.2 | SK-MGA13/20B-01 | 7.62 | 7.62 | SOIC SMT Foot |
| MGA Male pins | Leadless | 7.8 | SK-MGA10/20A-01 | 5.3 | 5.28 | SOIC SMT Foot |
| MGA Male pins | Leadless | 7.8 | SK-MGA6/24A-01 | – | 5.28 | SOIC SMT Foot |
| MGA Male pins | Leadless | 7.8 | SK-MGA6/24A-01 | – | 5.28 | SOIC SMT Foot |
| MGA Male pins | Leadless | 7.8 | SK-MGA10/20A-01 | 5.3 | 5.28 | SOIC SMT Foot |
| MGA Male pins | Leadless | 7.8 | SK-MGA6/24A-01 | – | 5.28 | SOIC SMT Foot |
| MGA Male pins | Leadless | 6.2 | SK-UGA5/20A-01 | – | 6.6 | SOIC SMT Foot |
| UGA Male pins | Leadless | 6.4 | SK-UGA5/20A-01 | 4.39 | 6.5 | SOIC SMT Foot |
| MGA Male pins | J-leaded | 6.8 | SK-MGA10/20A-01 | 7.49 | 7.49 | SOJ SMT Foot |
| MGA Male pins | J-leaded | 6.8 | SK-MGA10/20C-01 | 7.49 | 7.49 | SOJ SMT Foot |
| MGA Male pins | J-leaded | 6.8 | SK-MGA13/20A-01 | 7.62 | 7.62 | SOJ SMT Foot |
| MGA Male pins | J-leaded | 10.4 | SK-MGA12/24A-01 | 7.49 | 7.49 | SOIC SMT Foot |
| MGA Male pins | J-leaded | 10.4 | SK-MGA12/24B-01 | 7.49 | 7.49 | SOIC SMT Foot |
| MGA Male pins | J-leaded | 14.1 | SK-MGA12/24A-01 | 11.68 | 11.68 | SOIC SMT Foot |
| MGA Male pins | J-leaded | 14.1 | N/A | 11.68 | 11.68 | SOIC SMT Foot |
| MGA Male pins | J-leaded | 14.1 | SK-MGA13/24A-01 | 11.68 | 11.68 | SOIC SMT Foot |
| MGA Male pins | J-leaded | 14.1 | SK-MGA12/24B-01 | 11.68 | 11.68 | SOIC SMT Foot |
