SP Series IP68 – threaded coupling

The SP11, SP13, SP17, SP21, SP25 and SP29 series are all IP68 waterproof connectors, threaded coupling. They have the same electric spec. as SY series but IP67. The panel mounting hole size are 13-17-21mm, design for water-proof, indoor and outdoor applications, and under water harsh environment. It is designed for applications that need quick locking and frequent plug on/off mating. The connectors can be used for both cable to cable (in-line) and cable to panel-mount connections. Each side can be made male or female contact, (Plug or socket versions), currently the IP68 sealing caps are available on both cable connector and panel connector.
Applications: industrial, power and signal, outdoor LED / lights, outdoor security cameras, marine equipment and any outdoor environment applications.

Features:

• IP rating: IP68
• CE, RoHS approval
• Shell material: Nylon66, Fire resistant V-0
• Coupling: Threaded
• No. of contact: SP11: 2/5 / SP13: 2-9 / SP17: 2-10 / SP21: 2-15 / SP25: 2-19 / SP29: 2-35 gold-plated contacts
• Termination: Solder, screw & crimp terminations
• Rated Current (A) and V: 3 – 50 Amps / 125 – 500 (AC,V)
• Mating cycle: > 500
• Temperature range: -40°C / +85°C
• Can be cable-to-panel and cable-to-cable

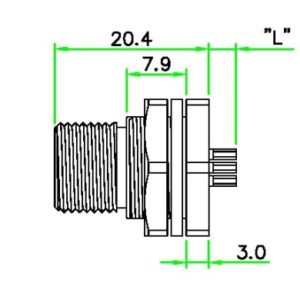

Part Nr.s (and description):

SP11:

SP1110/P_ _ (2, 3, 4, 5 pin male Cable connector Mate with SP111 and SP1112, Cable outer diameter options: I: 3-4mm, II: 4-6.5mm); SP1110/S_ _  (2, 3, 4, 5 pin female Cable connector Mate with SP1111 and SP1112, Cable outer diameter options: I: 4-6.5mm); SP1111/P_ _ (2, 3, 4, 5 pin in-line male Cable connector Mate with SP1110), Cable outer diameter options: I: 4-6.5mm); SP1111/S_ _ (2, 3, 4, 5 pin in-line female Cable connector Mate with S91110, Cable outer diameter options: I: 4-6.5mm); SP1112/P_ _ (2, 3, 4, 5 pin male Front mount socket connector Mate with SP1110); SP1112/S_ _ (2, 3, 4, 5 pin female Front mount socket connector Mate with SP1110).

SP13:

SP1310/P_ _ (2, 3, 4, 5, 6, 7, 9 pin male Cable connector Mate with SP1311 and SP1312, Cable outer diameter options: I: 4-6.5mm, II: 5-8mm); SP1310/S_ _  (2, 3, 4, 5, 6, 7, 9 pin female Cable connector Mate with SP1311 and SP1312, Cable outer diameter options: I: 4-6.5mm, II: 5-8mm); SP1311/P_ _ (2, 3, 4, 5, 6, 7, 9 pin in-line male Cable connector Mate with SP1310, Cable outer diameter options: I: 4-6.5mm, II 5-8mm); SP1311/S_ _ (2, 3, 4, 5, 6, 7, 9 pin in-line female Cable connector Mate with SP1310, Cable outer diameter options: I: 4-6.5mm, II: 5-8mm); SP1312/P_ _ (2, 3, 4, 5, 6, 7, 9 pin male Front mount socket connector Mate with SP1310); SY1312/S_ _ (2, 3, 4, 5, 6, 7, 9 pin female Front mount socket connector Mate with SP1310).

SP17:

SP1710/P_ _ (2, 3, 4, 2B, 3B, 4B, 5, 7, 9, 10 pin male Cable connector Mate with SP1711 and SP1712, Cable outer diameter options: I: 6-10mm – Option conn.: 1 solder, 3 crimp); SP1710/S_ _ (2, 3, 4, 2B, 3B, 4B, 5, 7, 9, 10 pin female Cable connector Mate with SP1711 and SP1712, Cable outer diameter options: I: 6-10mm – Option conn.: 1 solder, 3 crimp); SP1711/P_ _ (2, 3, 4, 2B, 3B, 4B, 5, 7, 9, 10 pin male Cable connector Mate with SP1711 and SP1712, Cable outer diameter options: I: 6-10mm – Option conn.: 1 solder, 2 crimp); SP1711/S_ _ (2, 3, 4, 2B, 3B, 4B, 5, 7, 9, 10 pin female Cable connector Mate with SP1711 and SP1712, Cable outer diameter options: I: 6-10mm – Option conn.: 1 solder, 3 crimp); SP1712/P_ _ (2, 3, 4, 2B, 3B, 4B, 5, 7, 9, 10 pin male Front mount socket connector Mate with SP1710 – Option conn.: 1 solder, 3 crimp); SP1712/S_ _ (2, 3, 4, 2B, 3B, 4B, 5, 7, 9, 10 pin female Front mount socket connector Mate with SP1710 – Option conn.: 1 solder, 3 crimp).

SP21:

SP2110/P_ _ (2, 3, 4, 5, 5B, 5C, 6, 6b, 7, 8, 9, 12, 15 pin male Cable connector Mate with SP2111, SP2112 and SP2113, Cable outer diameter options: I: 4,5-7mm,  II: 7-12mm, III: 5-9mm  – Option conn.: 1 solder, 2 screw, 3 crimp); SP2110/S_ _ (2, 3, 4, 5, 5B, 5C, 6, 6b, 7, 8, 9, 12, 15 pin female Cable connector Mate with with SP2111, SP2112 and SP2113, Cable outer diameter options: I: 4,5-7mm,  II: 7-12mm, III: 5-9mm – Option conn.: 1 solder, 2 screw, 3 crimp); SP2111/P_ _ (2, 3, 4, 5, 5B, 5C, 6, 6b, 7, 8, 9, 12, 15 pin male In-line Cable connector Mate with SP2110, Cable outer diameter options: I: 4,5-7mm,  II: 7-12mm, III: 5-9mm; SP2111/S_ _ (2, 3, 4, 5, 5B, 5C, 6, 6b, 7, 8, 9, 12, 15 pin female In-line Cable socket Mate with SY2110, Cable outer diameter options: I: 4,5-7mm,  II: 7-12mm, III: 5-9mm); SP2112/P_ _ (2, 3, 4, 5, 5B, 5C, 6, 6b, 7, 8, 9, 12, 15 pin male Front mount socket connector Mate with SP2110 – Option conn.: 1 solder, 2 screw, 3 crimp); SP2112/S_ _ (2, 3, 4, 5, 5B, 5C, 7, 9, 12 pin female Front mount socket connector Mate with SP2110 – Option conn.: 1 solder, 2 screw, 3 crimp); SP2113/P_ _ (2, 3, 4, 5, 5B, 5C, 6, 6b, 7, 8, 9, 12, 15 pin male 2-hole flange socket connector Mate with SP2110); SP2113/S_ _ (2, 3, 4, 5, 5B, 5C, 6, 6b, 7, 8, 9, 12, 15 pin female 2-hole flange socket connector Mate with SP2110; SP2116/P_ _ (2, 3, 4, 5, 5B, 5C, 6, 6b, 7, 8, 9, 12, 15 pin male angled cable connector Mate with SP2111, SP2112 and SP2113 – Option conn.: 1 solder, 2 screw, 3 crimp); SP2113/S_ _ (2, 3, 4, 5, 5B, 5C, 6, 6b, 7, 8, 9, 12, 15 pin female angled cable connector Mate with SP2111, SP2112 and SP2113 – Option conn.: 1 solder, 2 screw, 3 crimp).

SP25:

SP2510/P_ _ (2, 3, 4, 9, 10, 12, 12B, 19 pin male Cable connector Mate with SP2511, SP2512 and SP2513, Cable outer diameter options: I: 10, 14mm, II: 7, 12mm, – Option conn.: 1 solder, 2 screw, 3 crimp); SP2510/S_ _ (2, 3, 4, 9, 10, 12, 12B, 19 pin female Cable connector Mate with with SP2511, SP2512 and SP2513, Cable outer diameter options: I: 10, 14mm, II: 7, 12mm, – Option conn.: 1 solder, 2 screw, 3 crimp); SP2511/P_ _ (2, 3, 4, 9, 10, 12, 12B, 19 pin male In-line Cable connector Mate with SP2510, Cable outer diameter options: I: 10, 14mm, II: 7, 12mm); SP2111/S_ _ (2, 3, 4, 9, 10, 12, 12B, 19 pin female In-line Cable socket Mate with SP2510, Cable outer diameter options: I: 10, 14mm, II: 7, 12mm); SP2512/P_ _ (2, 3, 4, 9, 10, 12, 12B, 19 pin male Front mount socket connector Mate with SP2510 – Option conn.: 1 solder, 2 screw, 3 crimp); SP2512/S_ _ (2, 3, 4, 9, 10, 12, 12B, 19 pin female Front mount socket connector Mate with SP2510 – Option conn.: 1 solder, 2 screw, 3 crimp); SP2513/P_ _ (2, 3, 4, 9, 10, 12, 12B, 19 pin male 2-hole flange socket connector Mate with SP2510; SP2513/S_ _ (2, 3, 4, 9, 10, 12, 12B, 19 pin female 2-hole flange socket connector Mate with SP2510).

SP29:

SP2910/P_ _ (2, 3, 4, 5, 7, 8, 8B 9, 10, 10B, 12, 16, 17, 20, 24, 26, 35 pin male Cable connector Mate with SP2911, SP2912 and SP2913, Cable outer diameter options: I: 9-13mm, II: 13-16mm – Option conn.: 1 solder, 2 screw, 3 crimp); SP2910/S_ _ (2, 3, 4, 5, 7, 8, 8B 9, 10, 10B, 12, 16, 17, 20, 24, 26, 35 pin female Cable connector Mate with with SP2911, SP2912 and SP2913, Cable outer diameter options: I: 9-13mm, II: 13-16mm – Option conn.: 1 solder, 2 screw, 3 crimp); SP2911/P_ _ (2, 3, 4, 5, 7, 8, 8B 9, 10, 10B, 12, 16, 17, 20, 24, 26, 35 pin male In-line Cable connector Mate with SP2910, Cable outer diameter options: I: 9-13mm, II: 13-16mm); SP2111/S_ _ (2, 3, 4, 5, 7, 8, 8B 9, 10, 10B, 12, 16, 17, 20, 24, 26, 35 pin female In-line Cable socket Mate with SP2110, Cable outer diameter options: I: 9-13mm, II: 13-16mm); SP2912/P_ _ (2, 3, 4, 5, 7, 8, 8B 9, 10, 10B, 12, 16, 17, 20, 24, 26, 35 pin male Front mount socket connector Mate with SP2910 – Option conn.: 1 solder, 2 screw, 3 crimp); SP2912/S_ _ (2, 3, 4, 5, 7, 8, 8B 9, 10, 10B, 12, 16, 17, 20, 24, 26, 35 pin female Front mount socket connector Mate with SP2110 – Option conn.: 1 solder, 2 screw, 3 crimp); SP2913/P_ _ (2, 3, 4, 5, 7, 8, 8B 9, 10, 10B, 12, 16, 17, 20, 24, 26, 35 pin male 2-hole flange socket connector Mate with SP2910); SP2913/S_ _ (2, 3, 4, 5, 7, 8, 8B 9, 10, 10B, 12, 16, 17, 20, 24, 26, 35 pin female 2-hole flange socket connector Mate with SP2910).

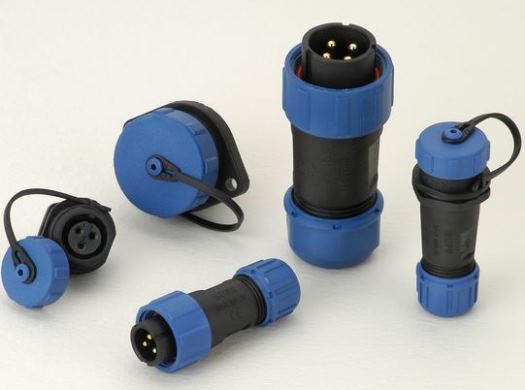

SP Series
