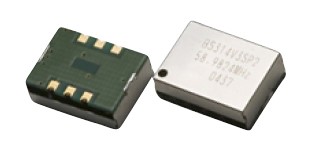

SP2C Series Surface-Mount Crystal Clock Oscillator

Features:

  • PCB based package with metal lid
  • Low Phase Noise
  • Tight Tolerances
  • 4 pad or 6 pad version
  • Applications: Base stations, Test equipment, Synthesizers …
  • Standard frequencies: 2.048 ; 10 ; 20 ; 24.705 ; 30.720 ; 32.768 ; 50 ; 61.44 MHz ; 76.8 ; 77.760 ; 81.92 ; 100 ; 125 ; 150 ; 155.52 ; 156.25 MHz
  • Supply Voltage: 3.3 and 5.0V
  • Dimension: 14.3 x 8.7 x 5.5 mm

SP2C Series

Categories: , Tags: , , , , , , , , ,

Description

HM International produce oscillators in a wide range of packages and output types including HCMOS, True Sinewave, LVPECL, HCSL and LVDS. Delivery leadtimes are short, even for production quantity requirements.

Picture Product Features Dimensions (mm) Frequency Range
sx1c SX1C Smallest package 2.0 x 1.6 x 0.8 mm 1.0 – 80.0 MHz
sx2c SX2C Very small package 2.5 x 2.0 x 0.9 mm 0.156 – 133.0 MHz
sx3c SX3C Wide Temperature range 3.2 x 2.5 x 1.1 mm 25 kHz – 160.0 MHz
 sx3cl SX3CL Very low current 3.2 x 2.5 x 1.1 mm 0.5 – 50 MHz
sx3cj SX3CJ Ultra Low Jitter 3.2 x 2.5 x 1.1 mm 5.0 – 50.0 MHz
sx5c SX5C Wide Temperature range 5.0 x 3.2 x 1.3 mm 25 kHz – 200.0 MHz
sx5cl SX5CL Very low current 5.0 x 3.2 x 1.3 mm 0.5 – 50 MHz
sx5cj SX5CJ Ultra Low Jitter 5.0 x 3.2 x 1.3 mm 5.0 – 50.0 MHz
sx7c SX7C Wide frequency range 7.0 x 5.0 x 1.5 mm 25 kHz – 200.0 MHz
sx7cl SX7CL Very low current 7.0 x 5.0 x 1.5 mm 0.25 – 50.0 MHz
sx7cj SX7CJ Ultra low jitter 7.0 x 5.0 x 1.5 mm 5.0 – 50.0 MHz
sx7cf SX7CF 4 frequencies switchable 7.0 x 5.0 x 1.8 mm 15.0 – 250.0 MHz
sp2c SP2C Wide frequency range 14.3 x 8.7 x 5.5 mm 1.0 – 800.0 MHz
dlhc DLHC DIL package 12.7 x 12.7 x 5.08 mm
12.7 x 12.7 x 7.48 mm		 1.0 – 200.0 MHz
dlc DLC DIL package 20.7 x 13.1 x 5.08 mm
20.7 x 13.1 x 7.48 mm		 1.0 – 800.0 MHz
