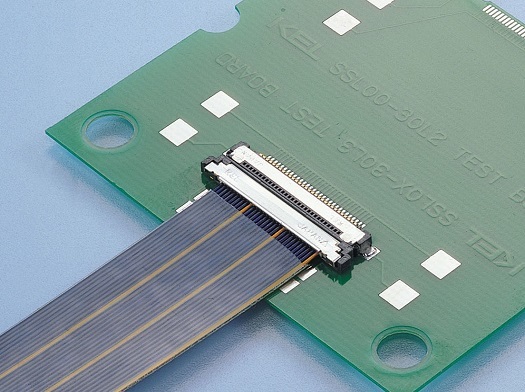

SSL Series 0.5mm Pitch Connector for Micro Coaxial Cable
▶ Compact connector with a low profile of 1.4 mm (0.055’’) and a mating width of 6.08 mm(0.239’’).
▶ For micro coaxial cable (#40 AWG).
▶ IDC of contacts all together is adopted for improved connection reliability and more compact connectors.
▶ Equipped with a metal shell, noise reduction and product strength are ensured.
▶ Multiple ground terminals are provided for enhanced transmission characteristics and EMS protection.
▶ Highly reliable design with effective mating length of 0.5mm (0.020’’).
Number of contacts: 10 pin, 20 pin, 30 pin, 40 pin
Type: SSL00 Receptacle (PCB side connector) without positioning posts · PN’s: SSL00-10S-0500, SSL00-20S-0500, SSL00-40S-0500, SSL00-10S-1000, SSL00-20S-1000, SSL00-30S-1000, SSL00-40S-1000, SSL00-10L3-0500, SSL00-20L3-0500, SSL00-30L3-0500, SSL00-10L3-1000, SSL00-20L3-1000, SSL00-30L3-1000, SSL00-40L3-1000
Type: SSL01 With positioning posts (Right angle only) · PN’s: SSL01-10L3-0500, SSL01-20L3-0500, SSL01-30L3-0500, SSL01-40L3-0500, SSL01-10L3-1000, SSL01-20L3-1000, SSL01-30L3-1000, SSL01-40L3-1000
Type: SSL20 Plug (cable side connector) · PN’s: SSL20-10SB, SSL20-20SB, SSL20-30SB, SSL20-40SB
