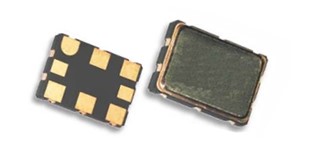

SX5LU LVDS Surface-Mount Crystal Clock Oscillator

Features:

  • Standard miniature package
  • Ultra-low Jitter
  • Up to 2100 MHz
  • Short Delivery
  • Applications: SONET, xDSL, SDH, Media box, …
  • Nominal Frequency: 150.0 MHz ~ 2100 MHz
  • Supply Voltage: +1.8V ±5% / +2.5V ±5% / +3.3V ±5%
  • Dimension: 5.0 x 3.2 x 1.2 mm

SX5LU LVDS

Categories: , , Tags: , , , , , ,

Description

HM International produce oscillators in a wide range of packages and output types including HCMOS, True Sinewave, LVPECL, HCSL and LVDS. Delivery leadtimes are short, even for production quantity requirements.

Related Product Series:

Picture Product Features Dimensions (mm) Frequency Range
 sx3lk SX3LK Jitter 0.2 ps typ. 3.2 x 2.5 x 1.1 mm 13.5 – 200 MHz
 sx3lq SX3LQ Reduced jitter design 3.2 x 2.5 x 1.1 mm 10.0 – 1450 MHz
 sx3lp SX3LP next-day-delivery 3.2 x 2.5 x 1.1 mm 10.0 – 1450 MHz
 sx5lk SX5LK Jitter 0.2 ps typ. 5.0 x 3.2 x 1.3 mm 13.5 – 200 MHz
 sx5lq SX5LQ Reduced jitter design 5.0 x 3.2 x 1.3 mm 10.0 – 1450 MHz
 sx5lp SX5LP next-day-delivery 5.0 x 3.2 x 1.3 mm 10.0 – 1450 MHz
 sx5lu SX5LU Ultra Low jitter 5.0 x 3.2 x 1.3 mm 150 – 2100 MHz
 sx7lk SX7LK Jitter 0.2 ps typ. 7.0 x 5.0 x 1.8 mm 13.5 – 200 MHz
 sx7lq SX7LQ Reduced jitter design 7.0 x 5.0 x 1.8 mm 10.0 – 1450 MHz
 sx7lp SX7LP next-day-delivery 7.0 x 5.0 x 1.8 mm 10.0 – 1450 MHz
 sx7lu SX7LU Ultra low jitter 7.0 x 5.0 x 1.8 mm 150 – 2100 MHz
 sx7lf SX7LF 4 Frequencies Switchable 7.0 x 5.0 x 1.8 mm 15 – 2100 MHz
 sp2l SP2L Very low jitter 14.3 x 8.7 x 5.5 mm 0.75 – 800 MHz
 dll DLL Wide frequency range 20.7 x 13.1 x 5.08 mm
20.7 x 13.1 x 7.48 mm		 0.75 – 800 MHz
