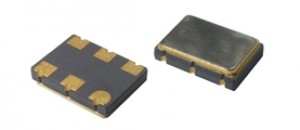

SX7EK Series LVPECL Surface-Mount Crystal Clock Oscillator

Features:

  • Standard miniature package
  • Ultra-low Jitter, 0.2 ps typ.
  • Wide Temperature Range
  • NO PLL
  • 6 pad version
  • Applications: SONET, xDSL, SDH, Set-top box,…
  • Standard frequencies: 13.5 MHz ~ 200 MHz
  • Supply Voltage: 2.5 and 3.3V
  • Dimension: 7.0 x 5.0 x 1.8 mm

SX7EK LVPECL Series

Categories: , , Tags: , , , , ,

Description

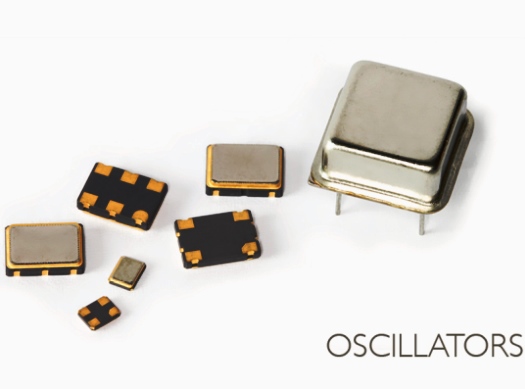

HM International produce oscillators in a wide range of packages and output types including HCMOS, True Sinewave, LVPECL, HCSL and LVDS. Delivery leadtimes are short, even for production quantity requirements.

Related Product Series:

Picture Product Features Dimensions (mm) Frequency Range
sx3ek SX3EK Jitter 0.2 ps typ. 3.2 x 2.5 x 1.1 mm 13.5 – 200 MHz

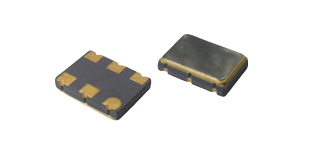

sx3eq SX3EQ Reduced jitter design 3.2 x 2.5 x 1.1 mm 10.0 – 1450 MHz

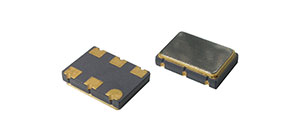

 sx3ep SX3EP next-day-delivery 3.2 x 2.5 x 1.1 mm 10.0 – 1450 MHz
sx5ek SX5EK Jitter 0.2 ps typ. 5.0 x 3.2 x 1.3 mm 13.5 – 200.0 MHz

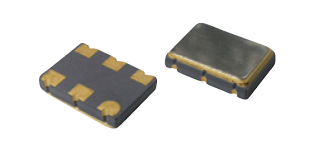

sx5eq SX5EQ Reduced jitter design 5.0 x 3.2 x 1.3 mm 10.0 – 1450 MHz

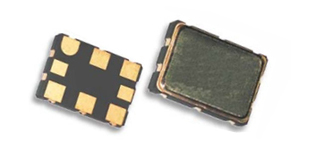

sx5eu SX5EU Ultra Low Jitter 5.0 x 3.2 x 1.3 mm 150 – 2100 MHz
 sx5ep SX5EP next-day-delivery 5.0 x 3.2 x 1.3 mm 10.0 – 1450 MHz
sx7ek SX7EK Jitter 0.2 ps typ. 7.0 x 5.0 x 1.8 mm 13.5 – 200.0 MHz

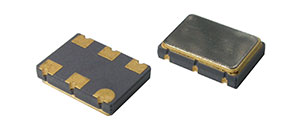

 sx7eq SX7EQ Reduced jitter design 7.0 x 5.0 x 1.8 mm 10.0 – 1450 MHz
 sx7ep SX7EP next-day-delivery 7.0 x 5.0 x 1.8 mm 10.0 – 1450 MHz
   sx7eu SX7EU Ultra Low Jitter 7.0 x 5.0 x 1.8 mm 150 – 2100 MHz

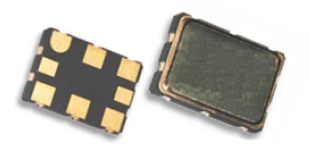

  sx7ef SX7EF 4 Frequencies Switchable 7.0 x 5.0 x 1.8 mm 15 – 2100 MHz

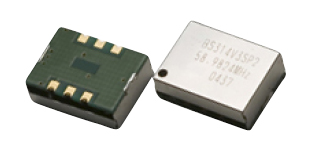

sp2e SP2E Very low jitter 14.3 x 8.7 x 5.5 mm 0.75 – 800 MHz

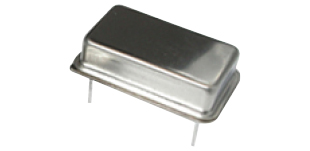

dle DLE Wide frequency range 20.7 x 13.1 x 5.08 mm
20.7 x 13.1 x 7.48 mm		 0.75 – 800 MHz
