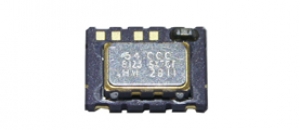

SX7KVTM 32.768 KHz Surface Mount VCTCXO Crystal Oscillators

Features:

  • Miniature package
  • 32.768 kHz VCTCXO
  • Low cost
  • Applications: Real time clocks,…
  • Nominal Frequency: 32.768 KHz
  • Supply Voltage: +1.8V ±5% / +2.5V ±10% / +3.3V ±10%
  • Dimension: 7.0 x 5.0 x 2.3 mm

SX7KVTM – 32.768 KHz VCTCXO

Description

HM International Voltage Controlled Temperature-Compensated Crystal Oscillators (VCTCXOs) are produced with CMOS, LVPECL, LVDS, HCSL, CML or Clipped Sine Wave outputs in a wide variety of packages and specification characteristics.

Related Product Series:

Picture Product Features Dimensions (mm) Frequency Range
 sx7kvtm SX7KVTM Low cost 7.0 x 5.0 x 2.3 mm 32.768 kHz
