SY Series IP67 – bayonet coupling

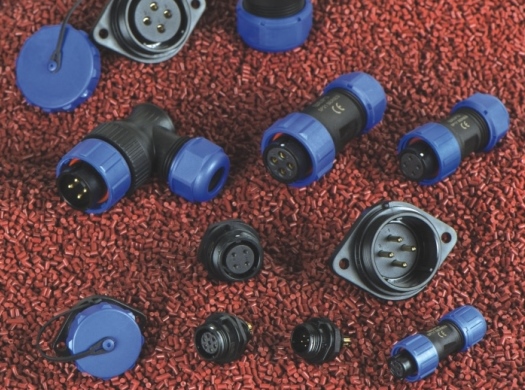

The SY11, SY13, SY17, SY21, SY25 and SY29 series are IP67 waterproof connectors, bayonet coupling. They have the same electric spec. as SP series but IP67. The panel mounting hole size are 11-13-17-21-25 and 29mm, design for water-proof, indoor and outdoor applications, and under water harsh environment. It is designed for applications that need quick locking and frequent plug on/off mating. The connectors can be used for both cable to cable (in-line) and cable to panel-mount connections. Each side can be made male or female contact, (Plug or socket versions), currently the IP67 sealing caps are available only for panel connector.
Applications: industrial, power and signal, outdoor LED / lights, outdoor security cameras, marine equipment and any outdoor environment applications.

Features:

• IP rating: IP67
• CE, UL, RoHS approval
• Shell material: Nylon66, Fire resistant V-0
• Coupling: Bayonet
• No. of contact: SY11: 2-5 / SY13: 2-9 / SY17: 2-10 / SY21: 2-15 / SY25: 2-15 / SY29: 2-35 gold-plated contacts
• Termination: Solder, screw & crimp terminations
• Rated Current (A) and V: 3 – 30 Amps / 125 – 500 (AC,V)
• Mating cycle: > 500
• Temperature range: -40°C / +85°C
• Can be cable-to-panel and cable-to-cable

Part Nr.s (and description):

SY11:

SY1110/P_ _ (2, 3, 4, 5 pin male Cable connector Mate with SY1111 and SY1112, Cable outer diameter options: I: 3-4mm, II: 4-6.5mm); SY1110/S_ _  (2, 3, 4, 5 pin female Cable connector Mate with SY1111 and SY1112, Cable outer diameter options: I: 3-4mm, II: 4-6.5mm); SY1111/P_ _ (2, 3, 4, 5 pin in-line male Cable connector Mate with SY1110, Cable outer diameter options: I: 3-4mm, II: 4-6.5mm); SY1111/S_ _ (2, 3, 4, 5 pin in-line female Cable connector Mate with SY1110, Cable outer diameter options: I: 3-4mm, II: 4-6.5mm); SY1112/P_ _ (2, 3, 4, 5 pin male Front mount socket connector Mate with SY1110); SY1112/S_ _ (2, 3, 4, 5 pin female Front mount socket connector Mate with SY1110).

SY13:

SY1310/P_ _ (2, 3, 4, 5, 6, 7, 9 pin male Cable connector Mate with SY1311 and SY1312, Cable outer diameter options: I: 4-6.5mm, II: 5-8mm); SY1310/S_ _  (2, 3, 4, 5, 6, 7, 9 pin female Cable connector Mate with SY1311 and SY1312, Cable outer diameter options: I: 4-6.5mm, II: 5-8mm); SY1311/P_ _ (2, 3, 4, 5, 6, 7, 9 pin in-line male Cable connector Mate with SY1310, Cable outer diameter options: I: 4-6.5mm, II: 5-8mm); SY1311/S_ _ (2, 3, 4, 5, 6, 7, 9 pin in-line female Cable connector Mate with SY1310, Cable outer diameter options: I: 4-6.5mm, II: 5-8mm); SY1312/P_ _  (2, 3, 4, 5, 6, 7, 9 pin male Front mount socket connector Mate with SY1310; SY1312/S_ _ (2, 3, 4, 5, 6, 7, 9 pin female Front mount socket connector Mate with SY1310).

SY17:

SY1710/P_ _ (2, 3, 4, 5, 7, 9, 10 pin male Cable connector Mate with SY1711 and SY1712, Cable outer diameter options: I: 6-10mm – Option conn.: 1 solder, 3 crimp); SY1710/S_ _ (2, 3, 4, 5, 7, 9, 10 pin female Cable connector Mate with SY1711 and SY1712, Cable outer diameter options: I: 6-10mm – Option conn.: 1 solder, 3 crimp); SY1711/P_ _ (2, 3, 4, 5, 7, 9, 10 pin male Cable connector Mate with SY1711 and SY1712, Cable outer diameter options: I: 6-10mm); SY1711/S_ _ (2, 3, 4, 5, 7, 9, 10 pin female Cable connector Mate with SY1711 and SY1712, Cable outer diameter options: I: 6-10mm); SY1712/P_ _ (2, 3, 4, 5, 7, 9, 10 pin male Front mount socket connector Mate with SY1710); SY1712/S_ _ (2, 3, 4, 5, 7, 9, 10 pin female Front mount socket connector Mate with SY1710).

SY21:

SY2110/P_ _ (2, 3, 4, 5, 5B, 5C, 7, 9, 12, 15 pin male Cable connector Mate with SY2111, SY2112 and SY2113, Cable outer diameter options: I: 4-5,7mm, II 7-12mm, III: 5-9mm – Option conn.: 1 solder, 2 screw, 3 crimp); SY2110/S_ _ (2, 3, 4, 5, 5B, 5C, 7, 9, 12, 15 pin female Cable connector Mate with with SY2111, SY2112 and SY2113, Cable outer diameter options: I: 4-5,7mm, II 7-12mm, III: 5-9mm – Option conn.: 1 solder, 2 screw, 3 crimp); SY2111/P_ _ (2, 3, 4, 5, 5B, 5C, 7, 9, 12, 15 pin male In-line Cable connector Mate with SY2110, SY2116, Cable outer diameter options: I: 4-5,7mm, II 7-12mm, III: 5-9mm); SY2111C/S_ _ (2, 3, 4, 5, 5B, 5C, 7, 9, 12 pin female In-line Cable socket Mate with SY2110, SY2116, Cable outer diameter options: I: 4-5,7mm, II 7-12mm, III: 5-9mm); SY2112C/P_ _ (2, 3, 4, 5, 5B, 5C, 7, 9, 12 pin male Front mount socket connector Mate with SY2110, SY2116 – Option conn.: 1 solder, 2 screw, 3 crimp); SY2112/S_ _ (2, 3, 4, 5, 5B, 5C, 7, 9, 12 pin female Front mount socket connector Mate with SY2110, SY2116 – Option conn.: 1 solder, 2 screw, 3 crimp); SY2113/P_ _ (2, 3, 4, 5, 5B, 5C, 7, 9, 12 pin male 2-hole flange socket connector Mate with SY2110, SY2116); SY2113/S_ _ (2, 3, 4, 5, 5B, 5C, 7, 9, 12 pin female 2-hole flange socket connector Mate with SY2110, SY2116); SY2116/P_ _ (2, 3, 4, 5, 5B, 5C, 7, 9, 12 pin male angled cable connector Mate with SY2111, SY2111C, SY2112 and SY2113, Cable outer diameter options: I: 4-5,7mm, II 7-12mm, III: 5-9mm – Option conn.: 1 solder, 2 screw, 3 crimp); SY2116/S_ _ (2, 3, 4, 5, 5B, 5C, 7, 9, 12 pin female angled cable connector Mate with SY2111, SY2111C, SY2112 and SY2113, Cable outer diameter options: I: 4-5,7mm, II 7-12mm, III: 5-9mm – Option conn.: 1 solder, 2 screw, 3 crimp).

SY25:

SY2510/P_ _ (2, 3, 4, 9, 10, 12, 12B, 19 pin male Cable connector Mate with SY2511, SY2511C, SY2512 and SY2513, Cable outer diameter options: I: 6-14mm – Option conn.: 1 solder, 2 screw, 3 crimp); SY2510/S_ _ (2, 3, 4, 9, 10, 12, 12B, 19 pin female Cable connector Mate with SY2511, SY2511C, SY2512 and SY2513, Cable outer diameter options: I: 6-10mm – Option conn.: 1 solder, 2 screw, 3 crimp); SY2511C/P_ _ (2, 3, 4, 9, 10, 12, 12B, 19 pin male Cable connector Mate with SY2510, Cable outer diameter options: I: 6-10mm); SY2511C/S_ _ (2, 3, 4, 9, 10, 12, 12B, 19 pin female Cable connector Mate with SY2510, Cable outer diameter options: I: 6-10mm); SY2512/P_ _ (2, 3, 4, 9, 10, 12, 12B, 19 pin male Rear mount socket connector Mate with SY2510); SY2512/S_ _ (2, 3, 4, 9, 10, 12, 12B, 19 pin female Rear mount socket connector Mate with SY2510); SY2513/P_ _ (2, 3, 4, 9, 10, 12, 12B, 19 pin male 2 hole flange connector Mate with SY2510); SY2513/S_ _ (2, 3, 4, 9, 10, 12, 12B, 19 pin female 2-hole flange Mate with SY2510); SY2515/P_ _ (2, 3, 4, 9, 10, 12, 12B, 19 pin male Front-nut mount socket Mate with SY2510); SY2515/S_ _ (2, 3, 4, 9, 10, 12, 12B, 19 pin female Front-nut mount socket connector Mate with SY2510); SY2510/PLC_ (Plug with LC adapter Mate with SY2511, SY2511C, SY2512, SY2513 and SY2515) – Wire lengh: 0.5m, 1.0m, 1.5m, 2.0m, 3.0m); SY2510/SLC_ (Receptacle with LC adapter C Mate with SY2510) – Wire lengh: 0.5m, 1.0m, 1.5m, 2.0m, 3.0m); SY2512/SLC_ (Rear mount receptacle with LC adapter Mate with SY2510); SY2513/SLC_ (2 hole flange with LC adapter Mate with SY2510); SY2515/SLC_ (Front-nut mount with LC adapter Mate with SY2510); SY2510/PUSB3.0_ (Plug with USB 3.0 adapter Mate with SY2511, SY2511C, SY2512, SY2513 and SY2515) – Wire lengh: 0.5m, 1.0m, 1.5m, 2.0m, 3.0m); SY2511C/SUSB3.0_ (Receptacle with USB 3.0 with adapter C Mate with SY2510) – Wire lengh: 0.5m, 1.0m, 1.5m, 2.0m, 3.0m); SY2512/SUSB3.0_ (Rear mount receptacle with USB 3.0 Mate with SY2510); SY2513/SUSB3.0_ (2-hole flange with USB 3.0 Mate with SY2510); SY2515/SUSB3.0_ (Front-nut mount with USB 3.0 Mate with SY2510).

SY29:

SY2910/P_ _ (2, 3, 4, 7, 8, 8B, 9, 10, 10B,  12, 16, 17, 20, 24, 26, 35 pin male Cable connector Mate with SY2911, SY2911C, SY2912 and SY2913, Cable outer diameter options: I: 9-13mm, II: 13-16mm – Option conn.: 1 solder, 2 screw, 3 crimp); SY2910/S_ _ (2, 3, 4, 7, 8, 8B, 9, 10, 10B,  12, 16, 17, 20, 24, 26, 35 pin female Cable connector Mate with SY2911, SY2911C, SY2912 and SY2913, Cable outer diameter options: I: 9-13mm, II: 13-16mm – Option conn.: 1 solder, 2 screw, 3 crimp); SY2911C/P_ _ (2, 3, 4, 7, 8, 8B, 9, 10, 10B,  12, 16, 17, 20, 24, 26, 35 pin male In-line Cable connector Mate with SY2910, Cable outer diameter options: I: 9-13mm, II: 13-16mm); SY2911C/S_ _ (2, 3, 4, 7, 8, 8B, 9, 10, 10B,  12, 16, 17, 20, 24, 26, 35 pin female In-line Cable socket Mate with SY2910, Cable outer diameter options: I: 9-13mm, II: 13-16mm); SY2912/P_ _ (2, 3, 4, 7, 8, 8B, 9, 10, 10B,  12, 16, 17, 20, 24, 26, 35 pin male Rear-nut mount socket connector Mate with SY2910 – ; SY2912/S_ _ (2, 3, 4, 7, 8, 8B, 9, 10, 10B,  12, 16, 17, 20, 24, 26, 35 pin female Rear-nut mount socket connector Mate with SY2910 – Option conn.: 1 solder, 2 screw, 3 crimp); SY2913/P_ _ (2, 3, 4, 7, 8, 8B, 9, 10, 10B,  12, 16, 17, 20, 24, 26, 35 pin male 2-hole flange socket connector Mate with SY2910); SY2913/S_ _ (2, 3, 4, 7, 8, 8B, 9, 10, 10B,  12, 16, 17, 20, 24, 26, 35 pin female 2-hole flange socket connector Mate with SY2910).
