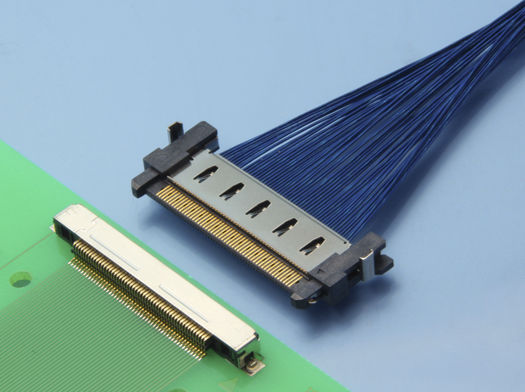

TMC Series 0.5mm Pitch Connector for Micro Coaxial Cable for High-Speed Differential Transmission
▶ Applied for high speed differential transmission (TMDS, LVDS)
▶ Provided with a soldered cable connection.
▶ For micro coaxial cable(#40 AWG).
▶ Equipped with a metal shell, noise reduction and product strength are ensured.
▶ Multiple ground terminals are provided for enhanced transmission characteristics and EMS protection.
▶ Highly reliable design with effective mating length of 1.0mm (0.039’’).
▶ Provided with a locking mechanism for secure locking and easy insertion/release.
Type: TMC01 Receptacle (PCB side connector) · PN’s: TMC01-51L-A, TMC01-51L-B, TMC01-51S-A, TMC01-51S-B
Type: TMC21 Plug (cable side connector) · PN’s: TMC21-51-1
