UM5 Series Thru-Hole Crystal Quartz

Features:

  • High Precision availability
  • Wide Frequency Range
  • Applications: Telecommunication equipment, Pagers,…
  • Frequency Range: 10.000 MHz ~ 200 MHz / 10.000 MHz + Fundamental / 35.0 MHz ~ 130.0 MHz 3rd-overtone / 65.0 MHz ~ 200 MHz 5th-overtone / 80.0 MHz ~ 200.0 MHz 7th-overtone
  • Dimension: 7.8 x 3.3 x 6.0 mm

UM5 Series

Categories: , Tags: , , , , ,

Description

HM International manufacture a wide range of quartz crystals to suit virtually all applications, including high frequency, low frequency and small SMD miniature packages. We also stock crystals in most popular package styles, frequencies and specifications for quick delivery.

Picture Product Dimensions (mm) Frequency Range

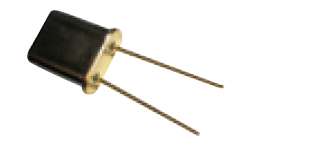

49u 49U 11.0 x 4.7 x 13.5 mm
11.0 x 4.7 x 11.0 mm		 1.0 – 200 MHz

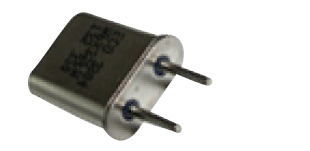

50u 50U 11.0 x 4.7 x 13.5 mm
11.0 x 4.7 x 11.0 mm		 1.0 – 200 MHz

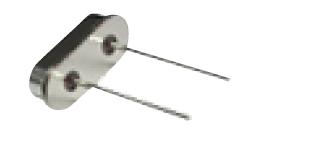

49s 49S 11.0 x 4.7 x 3.5 mm 3.2 – 70 MHz

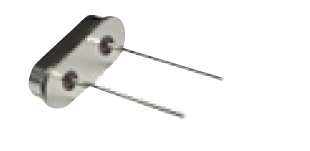

49ss 49SS 11.0 x 4.7 x 2.5 mm 3.2 – 70 MHz
um1 UM1 7.8 x 3.3 x 8.0 mm 4.000 – 200 MHz

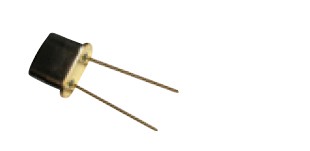

um5 UM5 7.8 x 3.3 x 6.0 mm 10.000 – 200 MHz
48u 48U 19.4 x 8.95 x 19.8 mm 0.8 – 200 MHz

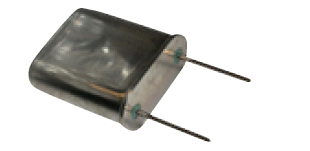

51u 51U 19.4 x 8.95 x 19.8 mm 0.8 – 200 MHz

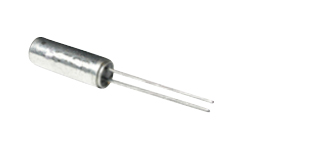

tb39 TB39 3.0 x 9.0 mm Cylindrical 3.5 – 70.0 MHz
