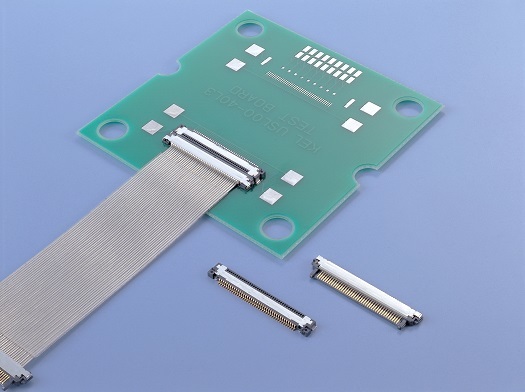

USL Series 0.4mm Pitch Connector for Micro Coaxial Cable
▶ Compact connector with a low profile of 1.0 mm (0.039’’) and a mating width of 5.6 mm (0.220’’).
▶ For micro coaxial cable(#42 AWG).
▶ IDC of contacts all together is adopted for improved connection reliability and more compact connectors.
▶ Equipped with a metal shell, noise reduction and product strength are ensured.
▶ Multiple ground terminals are provided for enhanced transmission characteristics and EMS protection.
▶ Highly reliable design with effective mating length of 0.5mm (0.020).
Number of contacts: 20 pin, 30 pin, 40 pin
Type: USL00 Receptacle (PCB side connector) · PN’s: USL00-20L-A, USL00-30L-A, USL00-40L-A, USL00-20L-B, USL00-30L-B, USL00-40L-B, USLS00-20-A, USLS00-30-A, USLS00-20-B , USLS00-30-B
Type: USL20 Plug (Cable side connector) · PN’s: USL20-20S, USL20-30S, USL20-40S
