USLS Series 0.4mm Pitch Connector for Micro Coaxial Cable (Stacking Type) · KEL

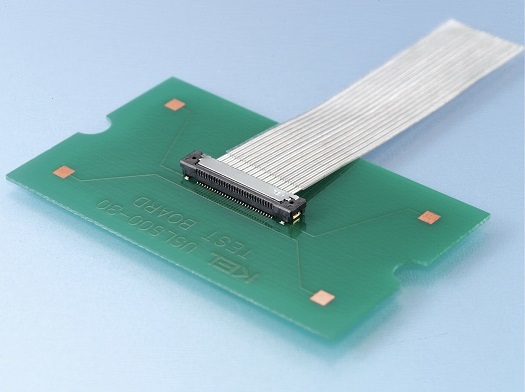

USLS Series 0.4mm Pitch Connector for Micro Coaxial Cable (Stacking Type)
▶ Compact connector with a low profile of 1.65 mm (0.065’’) and a mating width of 3.05 mm (0.120’’).
▶ For micro coaxial cable (#42 AWG).
▶ IDC of contacts all together is adopted for improved connection reliability and more compact connectors.
▶ Equipped with a metal shell, noise reduction and product strength are ensured.
▶ Multiple ground terminals are provided for enhanced transmission characteristics and EMS protection.
▶ Highly reliable design with effective mating length of 0.35mm (0.014’’).
▶ Nickel barrier of the board side contact prevents solder wicking.
▶ Possible to put through narrow tube with a diameter of φ2.7mm (φ 0.106”) even after soldering.
Number of contacts: 20 pin, 30 pin, 40 pin
Type: USLS00 Receptacle (PCB side connector) · PN’s: USLS00-20-A, USLS00-20-B, USLS00-20-C, USLS00-30-A, USLS00-30-B, USLS00-30-C, USLS00-40-A, USLS00-40-B, USLS00-40-C
Type: USLS20 Plug (Cable side connector) · PN’s: USLS20-20, USLS20-30, USLS20-40
