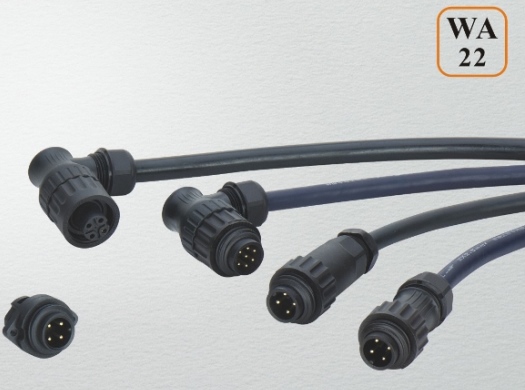

WA22 Series IP67

Features:

• Panel cut-out size: 22mm
• IP67 for outdoor and indoor
• Certified: c CSA us, CE, RoHS approval
• 3+PE, 6+PE gold plated contacts
• Screw and solder terminations
• Rated current: 10A and 16Amp
• Mating Cycle: > 500
• Can be cable-to-panel and cable-to-cable
• Compatible with other company similar products

Part Nr.s (and description):

WA22 3+PE Screw:

WA22J4TE2 (4pin male cable plug, Cable outer diameter options: 6mm, 8mm, 10mm); WA22K4Z2 (4pin female panel socket); WA22K4ZE2 (4pin female cable plug, Cable outer diameter options: 6mm, 8mm, 10mm); WA22J4Z2 (4pin male panel socket); WA22J4TK2 (4pin male cable plug with short back shell, Cable outer diameter: I: 4.5-7mm,II: 7-12mm); WA22K4TK2 (4pin female cable plug with short back shell, Cable outer diameter: I: 4.5-7mm,II: 7-12mm); WA22J4TK2 (4pin female cable plug with angled back shell, Cable outer diameter: I: 4.5-7mm,II: 7-12mm); WA22K4TL2 (4pin male cable plug with angled back shell, Cable outer diameter: I: 4.5-7mm,II: 7-12mm)

WA22 6+PE Solder:

WA22J7TE1 (7pin male cable plug, Cable outer diameter options: 6mm, 8mm, 10mm); WA22K7Z1 (7pin female panel socket); WA22K7ZE1 (7pin female cable plug, Cable outer diameter options: 6mm, 8mm, 10mm); WA22J7Z1 (7pin male panel socket); WA22J7TK1 (7pin male cable plug with short back shell, Cable outer diameter: I: 4.5-7mm,II: 7-12mm); WA22K7TK1 (7pin female cable plug with short back shell, Cable outer diameter: I: 4.5-7mm,II: 7-12mm); WA22J7TL1 (7pin male cable plug with angled back shell, Cable outer diameter: I: 4.5-7mm,II: 7-12mm); WA22K7TL1 (7pin female cable plug with angled back shell, Cable outer diameter: I: 4.5-7mm,II: 7-12mm)

CAPS:

WA22G1 (Cap for male); WA22G2 (Cap for female)
