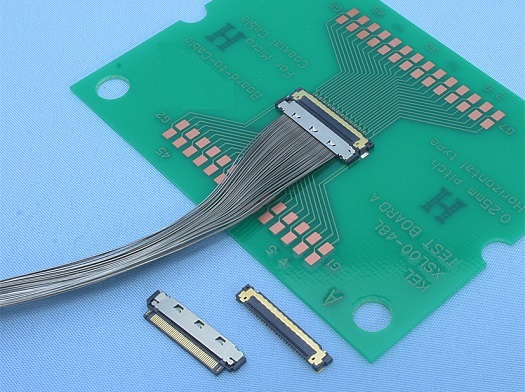

XSL Series 0.25mm Pitch Connector for Micro Coaxial Cable
▶ Compact connector with a low profile of 1.0 mm (0.039’’) and a mating width of 6 mm (0.236’’).
▶ For micro coaxial cable (#44 AWG, #46 AWG).
▶ Signal terminals are soldered by Pulse Heat in one shot and keep a stable & highly reliable connection.
▶ Equipped with a metal shell, noise reduction and product strength are ensured.
▶ Multiple ground terminals are provided for enhanced transmission characteristics and EMS protection.
▶ Highly reliable design with effective mating length of 0.51mm (0.020’’).
Number of contacts: 48 pin
Type: XSL00 Receptacle (PCB side connector) · PN’s: XSL00-48L-A, XSL00-48L-B, XSL00-48L-C
Type: XSLS20 Plug (Cable side connector) · PN’s: XSLS20-48S
