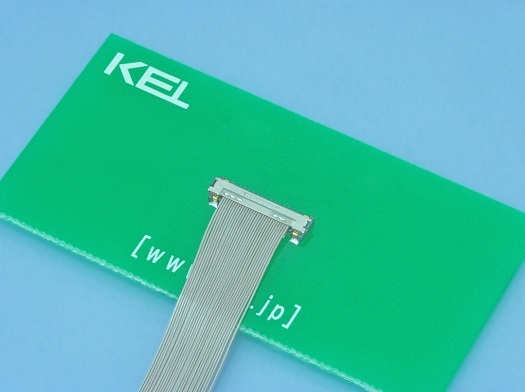

XSLS Series 0.25mm Pitch Connector for Micro Coaxial Cable (Stacking Type)
▶ Compact connector with a low profile of 1.44 mm (0.057’’) and a mating width of 3.05 mm (0.120’’).
▶ For micro coaxial cable (#42 AWG, #44 AWG, #46 AWG).
▶ Signal terminals are soldered by Pulse Heat in one shot and keep a stable & highly reliable connection.
▶ Equipped with a metal shell, noise reduction and product strength are ensured.
▶ Multiple ground terminals are provided for enhanced transmission characteristics and EMS protection.
▶ Highly reliable design with effective mating length of 0.31mm (0.012’’).
▶ Nickel barrier of the board side contact prevents solder wicking.
▶ Possible to put through narrow tube with a diameter of φ2.7mm (φ 0.106”) even after soldering.
▶ The bottom of the connector is covered with resin, thus circuit may be printed under the connector.
Number of contacts: 30 pin, 40 pin
Type: XSLS00 Receptacle (PCB side connector) with suction pick-up surface · PN’s: XSLS00-30-A, XSLS00-30-B, XSLS00-30-C, XSLS00-40-A, XSLS00-40-B, XSLS00-40-C
Type: XSLS01 Without suction pick-up surface · PN’s: XSLS01-30-A, XSLS01-30-B, XSLS01-30-C, XSLS01-40-A, XSLS01-40-B, XSLS01-40-C
Type: XSLS20 Plug (Cable side connector) · PN’s: XSLS20-30-A, XSLS20-30-B, XSLS20-30-C, XSLS20-40-A, XSLS20-40-B, XSLS20-40-C,
